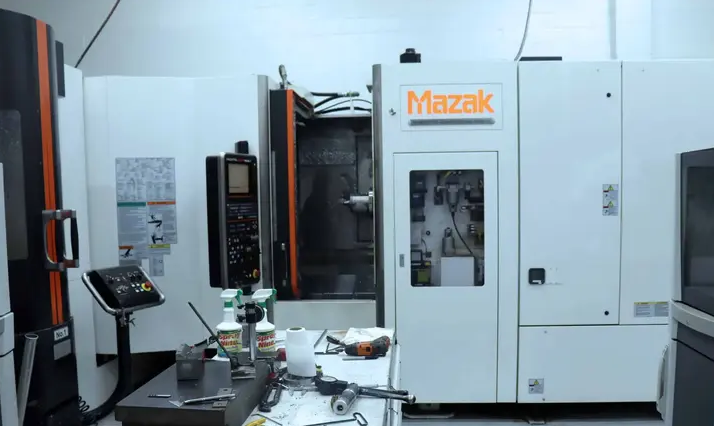

Mazak HCN-4000III 4 Axis

X axis travel: 22"
Y axis travel: 25.2"
Z axis travel: 25.2"
Rapid traverse rate limited with continuous axis movement: 2,362 IPM
Distance from pallet center to spindle nose: 2.8" – 28.0"
Control: CNC (Mazatrol Matrix Nexus 2)
Bar capacity:
Spindle speed: 18,000 RPM
Power: 25 HP
Taper: CAT 40
Tool changer: 120 ATC
Pallet width: 15.7"
Pallet length: 15.7"
Method of tool selection: Shortest path
Table indexing time: 1.3 sec per 90°
Spindle bearing: 2.75"
Max tool diameter/length/weight: 6.7"
Tool change time: 2.4 sec
Coolant pump motor: 50/60 Hz
6 pallet pool Palletech system
1 loading station
Qty 6 pallets (15.7" x 15.7")
Renishaw probe
Renishaw tool presetter
Upgraded hinge type chip conveyor
Full 4th axis
300 PSI coolant thru spindle
Machine dimensions: 87" x 207" x 106.8" H
Approximate weight: 23,584 lbs
Cutting hours: 20,000
