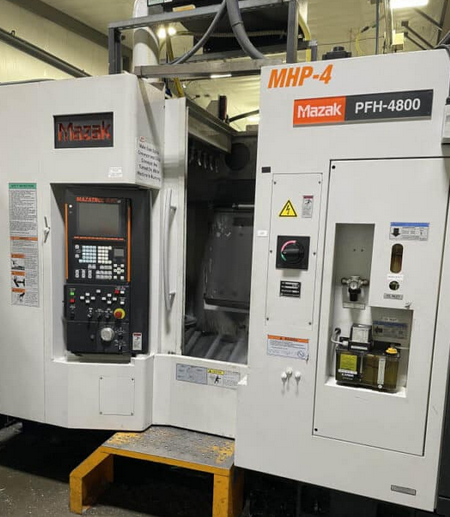

Mazak PFH-4800 (A) 3 Axis

X-axis travel: 22.05"
Y-axis travel: 24.8"
Z-axis travel: 23.62"
Distance spindle center to top of pallet: 3.15" – 28.0"
Distance spindle nose to pallet center: 2.75" – 26.37"
Full 4th pallet indexing: 0.001°
Control: Mazatrol Fusion 640M
Pallet size: 15.75" x 15.75"
Max table load: 880 lbs
Max workpiece height: 27.95"
Max workpiece height with through pallet hydraulics: 27.17"
Max workpiece diameter: 24.8"
Spindle nose: CAT #40
Spindle speed increment: 1 rpm
Number of spindle ranges: 2
Tool clamping force: 2,314 ft-lbs
Max spindle speed: 15,000 rpm
Spindle horsepower (30 min/continuous): 40 / 30 hp
Spindle torque: 123 ft-lbs
Full horsepower at: 1,500 rpm
Constant torque range: 0 – 1,060 rpm
ATC capacity: 120 tools
Mazak Super Flow S8-1000 high-pressure coolant thru spindle
