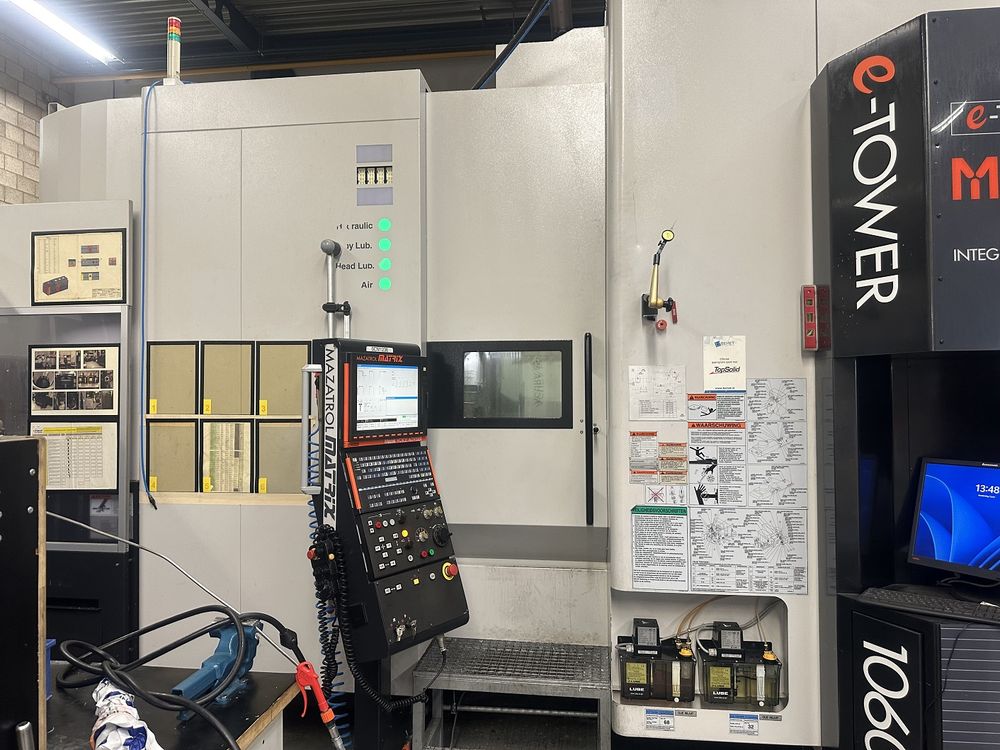

Mazak Integrex e-1060 V II 5 Axis

X travel 1875 mm
Y travel 1060 mm
Z travel 1345 mm
B axis 150°
C axis 360°
CNC control Mazatrol Matrix
5-axis simultaneous machining
Max workpiece diameter 1250 mm
Max workpiece height 1250 mm
Main spindle speed 500 rpm
Main spindle full C-axis
Milling spindle power 37 kW
Milling spindle speed 10000 rpm
Tool magazine capacity 240 tools
Tool interface Capto C8
Coolant pressure 70 bar internal supply
Pallet system 6 pallets
1 pallet 800 × 800 mm
1 pallet 1000 × 1000 mm
3 pallets Ø1000 mm
1 pallet Ø1000 mm with 4-jaw chuck
Overload detection
Air blow-out of workpiece
Coolant temperature control unit
Tool Hive tool magazine 240 tools Capto C8
Concep 2000III chip conveyor with tank and drum filter
Separate coolant tank with paper belt filter KNOLL
70 bar high-pressure pump
Preparation for tool ID / data management
Preparation Mazak Monitoring B
Measuring probe Renishaw OMP60
Tooleye
Laser tool measurement for driven tools
Automatic pecking cycle with load detection
Synchronized thread cutting
EIA/ISO 5-axis simultaneous machining
Tool radius compensation / 5-axis machining
EIA dynamic compensation 1 + 2
Max program size 8 MB
Shape compensation for rotating axes
Cylindrical interpolation
