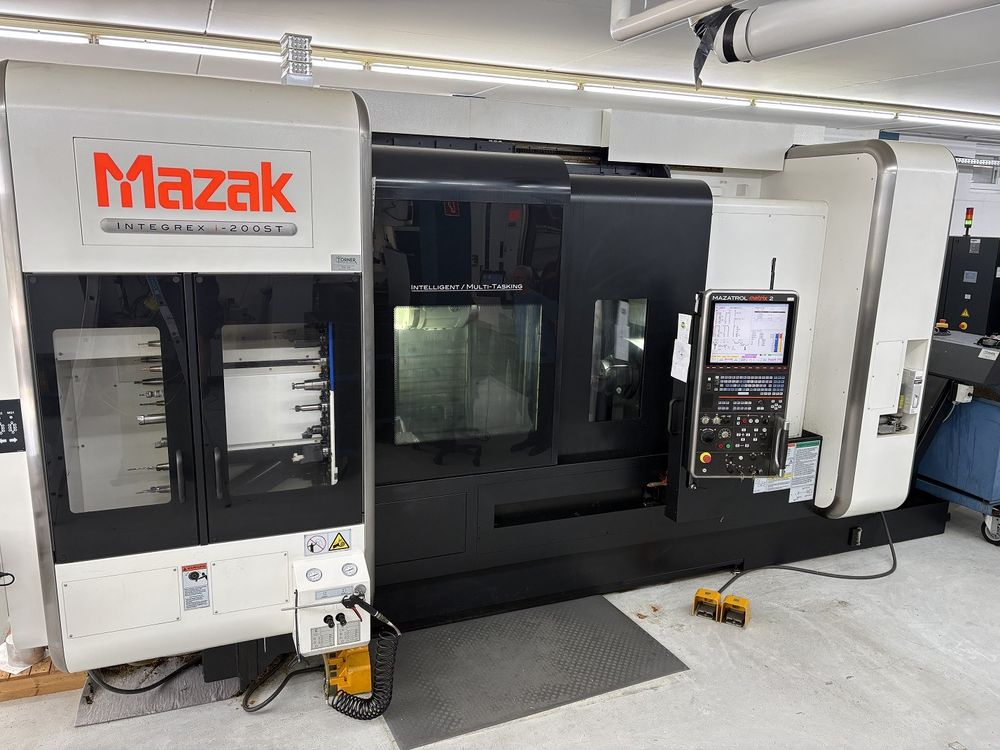

Mazak INTEGREX i-200ST 5 Axis

X1/X2-axis travel 615/230 mm
Y-axis travel 260 mm
Z1/Z2-axis travel 1585/1388 mm
W-axis travel 1539 mm
B-axis -30° to +210°
5-axis simultaneous machining
Mazatrol Matrix 2 control system

Max turning diameter 658 mm
Max turning length 1519 mm
C-axis resolution 0.0001°

Main spindle power 22 kW
Main spindle speed 5000 rpm
Spindle nose A2-6
Max bar capacity 65 mm

Sub spindle power 18.5 kW
Sub spindle speed 5000 rpm
Sub spindle spindle nose A2-6
C-axis sub spindle 0.0001°

Milling spindle power 22 kW
Milling spindle speed 12000 rpm
Tool interface Capto C6

Lower turret 9 stations
Tool magazine capacity 72 tools (chain magazine)

Renishaw RMP60 probing system
Direct scales on X1, Y, Z1 axes
Automatic door opening/closing system
Robot interface included
Overload detection system
Synchronized tapping function
Cylindrical and polar interpolation
5-axis machining software package
Gear hobbing capability
Swarf conveyor included
Air and coolant blow-through system
High-pressure coolant preparation 70 bar
High-pressure pump 15 bar
Main spindle chuck Kitagawa B-208 (3-jaw)
Sub spindle chuck Kitagawa B-208 (3-jaw)
