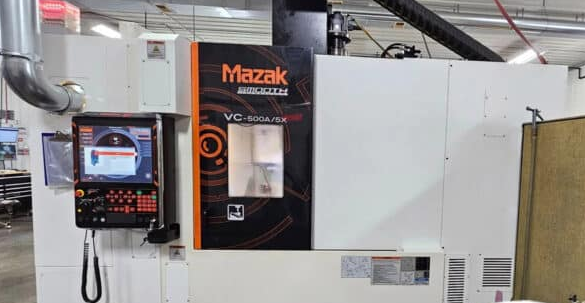

Mazak VC-500A/5X 5 Axis

X-axis travel 21.85"
Y-axis travel 19.88"
Z-axis travel 20.07"
B-axis travel +/- 110°
C-axis positioning +/- 360°
Mazatrol Smooth X control
Coolant through spindle 213 PSI
8 MB memory
Factory automatic 2-pallet changer
HSK pallet work holding system
Auto pecking cycle
Smooth Set & Inspect
5-axis machining package
EIA/ISO
Synchronized tapping
Dual probing kit RMP 600
RTS-AA
Inspection Plus software
Chip conveyor
Table size 19.88" x 19.88"
2 pallets
Maximum table load 440 lbs
HSK 40 spindle taper
Spindle speed 20,000 rpm
Main spindle motor 15 HP
Rapid traverse X-axis 1181 IPM
Rapid traverse Y-axis 1181 IPM
Rapid traverse Z-axis 1181 IPM
60 tool stations
Maximum tool diameter 4.92"
Maximum tool length 10.23"
Maximum tool weight 17 lbs
19.69" sub plate mountable on both pallets
Machine weight 14,330 lbs
