Mazak INTEGREX I-630V 5 Axis

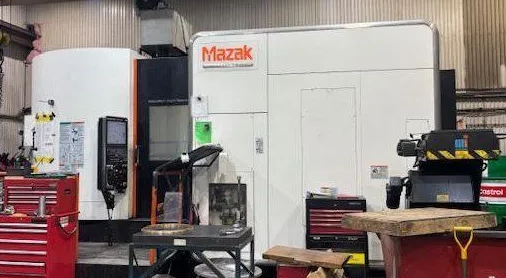

MAZAK INTEGREX I-630V
2013

X 58.1"
Y 41.3"
Z 41.3"
B Axis Tilt -30° to +120°
C Axis 360° continuous

Max machining diameter 41.3"
Max workpiece 41.3" x 39.4"
Chuck diameter 31.5" (Two 3-jaw scroll chucks)
Table load capacity 3,858 lbs (chuck weight included)
Table max speed 550 RPM
Table motor 50 HP
Min indexing angle (C Axis) 0.0001°
Milling max spindle speed 10,000 RPM
Spindle taper CAT 50
Min indexing angle (B Axis) 0.0001°
Milling spindle motor 40/50 HP
120-position automatic tool changer
Mazak Mazatrol Matrix 2 CNC control
Automatic tool eye
Two-position pallet changer with setup station
Chip conveyor
High-pressure coolant through spindle
