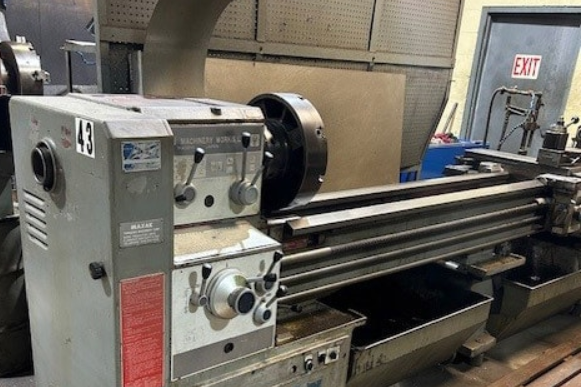

Mazak Manual Engine Lathe 1500 rpm 21 × 80

Turning diameter over bed: 21 in
Swing in gap: 27-31/32 in
Turning diameter over cross slide: 11-51/64 in
Distance between centers: 80 in
Spindle bore: 3-1/8 in
Spindle nose: D1-8 Camlock
Spindle speed: 15–1500 rpm
Longitudinal feed: 0.0022–0.040 in/rev
Cross feed: 1/2 longitudinal feed
Inch threading: 4–56 TPI
Metric threading: 0.5–7 mm
Bed width: 16-17/32 in
Tailstock quill travel: 7-7/8 in
Tailstock taper: MT5
Machine dimensions: 133 × 49 in
Machine weight: 6000 lb
Inch threading
Metric threading
Diametral threading
Module threading
Fine feed settings
Coarse feed settings
Tool post
Tailstock
