Mazak MAZAK MAZATROL MATRIX CNC color control 4500 RPM NEXUS QTN 250MII/500 2 Axis

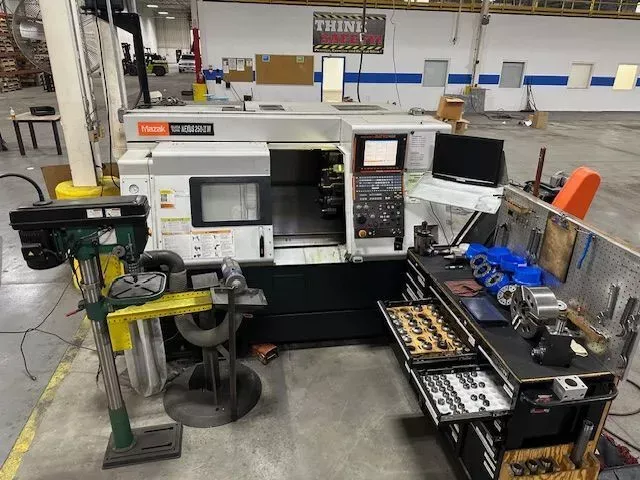

MAZAK NEXUS QTN 250MII/500
2008

26.5" swing over bed
19.85" machining length
24" distance between centers
10" chuck size
A2-8 spindle nose
3" spindle bar capacity
4,000 RPM spindle speed
35 HP spindle motor
3.4" spindle bore diameter
9" X-axis travel
22.7" Z-axis travel
1,181 ipm X-axis rapid traverse
1,299 ipm Z-axis rapid traverse
12-position turret
4,500 RPM turret rotary tool spindle speed
7.5 HP turret rotary tool motor
MT5 tailstock taper
Programmable tailstock
21.75" tailstock travel
3 axes
3" bar capacity
Live tooling
No sub spindle
MAZAK MAZATROL MATRIX CNC color control
14,000 lb weight
MAZATROL MATRIX CNC control
Chip conveyor
EIA, spiral, EIA 3D comp, rotation, geometric, scaling, external data I/O
Thread, inverse time, auto ATLM, polar coordinate input
Comparison stop, G54.1, sync mill tap, variable 600 macro
Cylinder
EIA helical tap, EIA pattern cycle, tilted work plane
Pitch error compensation
MAZAK high pressure coolant
Mist collection system
2 O.D. rotary heads
4 I.D. rotary heads
Drill press
10" hydraulic 3-jaw chuck
New Royal collet chuck
Tooling cabinet with miscellaneous inserts
Collets included
Perishable tooling included
CRT and keyboard included
Pedestal grinder included
