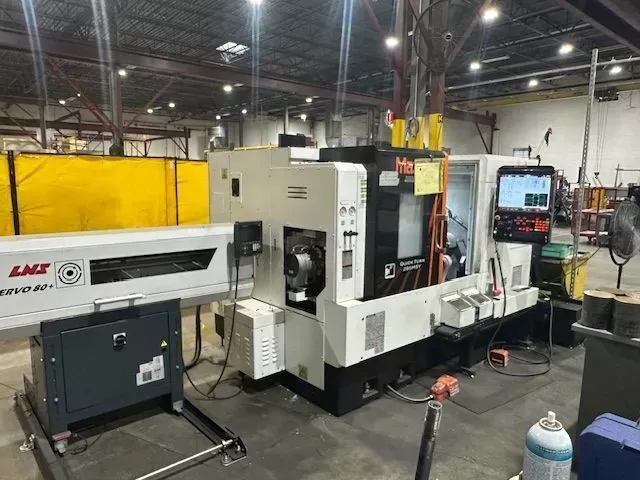

Mazak MAZAK MAZATROL SMOOTH G CNC color control 6000 RPM QUICK TURN 250MSY 5 Axis

X1-axis travel 9"
Z1-axis travel 22.75"
Y1-axis travel 4"
W-axis travel sub spindle 23"
C-axis indexing 1 0.00
C-axis indexing 2 0.00

Rapid traverse rate X1 1181 ipm
Rapid traverse rate Z1 1299 ipm
Rapid traverse rate Y1 826 ipm

Control MAZAK MAZATROL SMOOTH G CNC color control
Bar capacity 1 3.25"
Swing over bed 26.5"
Turning diameter 14.75"
Turning length 21.27"
Distance between spindles 21.275"

Spindle bore diameter 1 3.6"
Spindle speeds 1 4,000 RPM
Spindle horsepower 1 35 hp
Spindle nose 1 A2-8
Spindle bore diameter 2 1.7"
Spindle speeds 2 6,000 RPM
Spindle horsepower 2 15 hp
Spindle nose 2 A2-5

Turret tool positions 1 12 station
Turret rotary tool speeds 1 6,000 RPM
Turret rotary tool horsepower 1 10 hp
Chuck size 1 10"
Chuck size 2 6"
Machine weight 11,905 lb

10" 3-jaw hydraulic chuck
6" 3-jaw rear spindle
Chip conveyor
All available tool holders
All available manuals
Barfeed interface

LNS Servo 80+ short magazine barfeed system
Automatic tool eye
Twin automatic parts catchers, front chuck and rear chuck
3 rotary heads
EIA, spiral, EIA 3D comp, rotation, geometric, scaling, external data I/O
Shape comp, thread, sub C-axis control, inverse time
Auto ATLM, polar coordinates input, comparison stop, G54.1, sync mill tap
Variable 600 sets cylinder and polar coordinate interpolation
EIA helical tap cycle
EIA pattern cycle
Thread start point comp
Re-thread
Program memory expansion
Pitch error comp
Thread cut speed override
