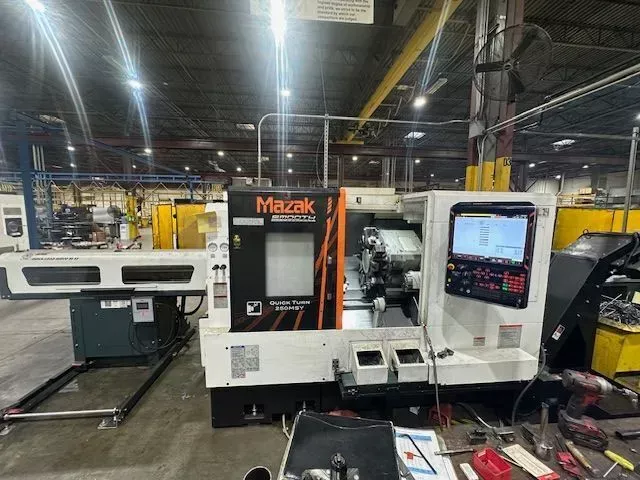

Mazak MAZATROL SMOOTH G CNC color control 6000 RPM QUICK TURN 250MSY 8 Axis

X1-axis travel 9"
Z1-axis travel 22.75"
Y1-axis travel 4"
X-axis travel 10.2"
Z-axis travel 31.3"
Y-axis travel 4"
W-axis travel sub spindle 23"
W-axis travel sub spindle 19.85"
C-axis indexing 0.0001

Rapid traverse rate X1 1181 ipm
Rapid traverse rate Z1 1299 ipm
Rapid traverse rate Y1 826 ipm
Control MAZATROL SMOOTH G CNC color control
Bar capacity 3.25"
Bar capacity 3.2"
Swing over bed 26.5"
Turning diameter 14.75"
Turning length 21.27"
Turning length 19.85"
Distance between spindles 21.275"

Spindle bore diameter 3.6"
Spindle bore diameter 1.7"
Spindle speeds 4000 RPM
Spindle speeds 6000 RPM
Spindle horsepower 35 hp
Spindle horsepower 15 hp
Spindle nose A2-8
Spindle nose A2-5
Turret tool positions 12 station
Turret rotary tool speeds 6000 RPM
Turret rotary tool horsepower 10 hp
Chuck size 10"
Chuck size 6"
Machine weight 11,905 lb

10" 3-jaw hydraulic chuck
6" 3-jaw rear spindle
Chip conveyor
All available tool holders
All available manuals
Barfeed interface
LNS Servo 80 S2 short magazine barfeed system
Automatic tool eye
Twin automatic parts catchers, front chuck and rear chuck
3 rotary heads
EIA
Spiral
EIA 3D comp
Rotation
Geometric
Scaling
External data I/O
Shape comp
Thread
Sub C-axis control
Inverse time
Auto ATLM
Polar coordinates input
Comparison stop
G54.1
Sync mill tap
Variable 600 sets cylinder and polar coordinate interpolation
EIA helical tap cycle
EIA pattern cycle
Thread start point comp
Re-thread
Program memory expansion
Pitch error comp
Thread cut speed override
