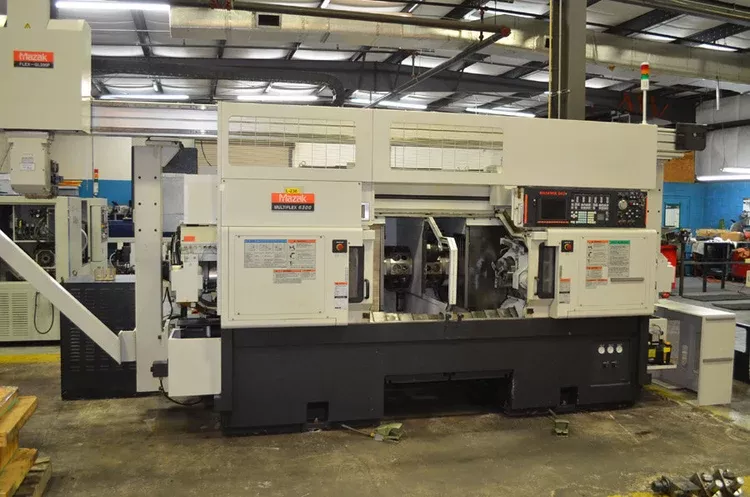

Mazak MAZATROL 640T CNC color control 2,800 RPM MULTIPEX 650 6 Axis

X1-axis travel: 14.4"
X2-axis travel: 14.4"
Z1-axis travel: 29.7"
Z2-axis travel: 29.7"
C1-axis indexing: 0.001°
C2-axis indexing: 0.001°

Control: MAZATROL 640T CNC color control
Chip conveyor
(2) high pressure coolant pumps
(2) tool eyes
Programmable center partition
Chuck open/close confirmation
Chuck air blast
Transfer air blast
EIA/ISO
GL 500F gantry robot
Full set of all static and rotary holders
Spindle bar capacity 1: 3.46"
Spindle bar capacity 2: 3.46"
Swing over bed: 24.4"
Turning diameter/shaft diameter: 20"
Spindle speed 1: 2,800 RPM
Spindle speed 2: 2,800 RPM
Spindle motor 1: 50 hp
Spindle motor 2: 50 hp
Spindle nose 1: A2-8
Spindle nose 2: A2-8
Sub spindle: Yes
Turret rotary tool spindle speed 1: 3,000 RPM
Turret rotary tool spindle speed 2: 3,000 RPM
Turret rotary tool motor 1: 10 hp
Turret rotary tool motor 2: 10 hp
Rapid traverse X1: 709 in/min
Rapid traverse X2: 709 in/min
Rapid traverse Z1: 787 in/min
Rapid traverse Z2: 787 in/min
Chuck size 1: 18"
Chuck size 2: 18"
(2) 18" 3-jaw Kitagawa chucks
Distance between spindles: 76.78"
Machining length: 8.86"
Gear ranges: 2
Turret configuration 1: 12 stations
Turret configuration 2: 12 stations
