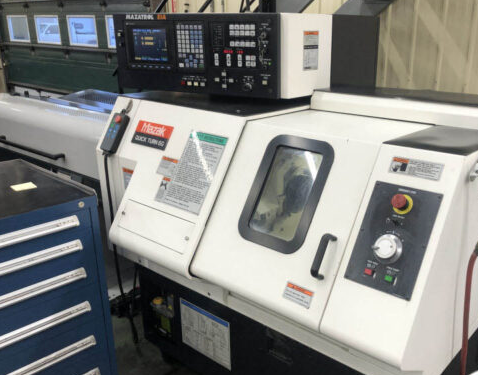

Mazak Mazatrol-EIA control 7,000 RPM QUICK TURN 6G QT-6G 2 Axis

Standard chuck diameter: 5"
Standard bar capacity: 1.26"
Max. swing: 18.5"
Swing over carriage: 3.94"
Max. cutting diameter: 3.74"
Max. machining length: 2.36"
Spindle nose: 115 mm Dia Flat
Spindle bore: 1.73"
Spindle type: Integral spindle
Spindle speed: 35 – 7,000 RPM
Number of spindle ranges: 1
Spindle horsepower cont: 5 HP
Spindle horsepower 30 min: 7.5 HP
Spindle torque: 26 ft/lbs
Turret type: Gang tool
Number of tools: 6
Turning & facing: 5/8" x 5/8"
Boring bar max diameter: 3/4"
X-axis travel: 11.81"
Z-axis travel: 9.45"
Mazatrol-EIA control
Gang tool plate
EIA/ISO code input function
LNS ECO Load barfeeder short magazine
Manual tool eye
Collet chuck
Chip conveyor
