Mazak Mazatrol Fusion 640MT/CRT 1000 Cybertech Turn 4500MT/3000 3 Axis

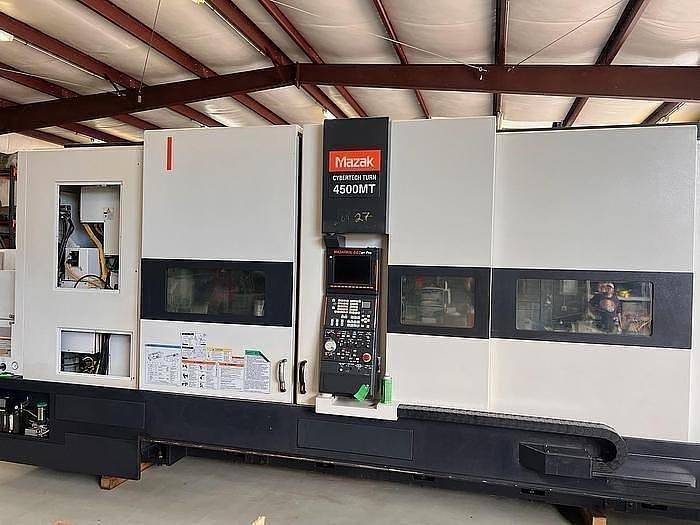

Mazak Cybertech Turn 4500MT/3000
2008

Capacity: Swing 33.86
Swing Over Cross Slide 27.5
Maximum Machining Diameter 31.89
Distance Between Centers 120

Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 1000
Spindle Bore 10.8
Main Motor 50 hp
Spindle Nose A2-20

Turret: Number Of positions (Upper + Lower) 12 / 8
X-Axis Travel (Upper/Lower) 21.26" / 9.06
Z-Axis Travel (Upper/Lower) 123.2" / 100.4
C-Axis: Spindle Indexing 0.001 Degrees

Equipped With:
Mazatrol Fusion 640MT CNC Control
24" SMW Model BB-N-600-275-3 Big Bore 3 Jaw Chuck with 10.8" Hole
24" Manual Chuck on Rear with 8" Hole
Chip Conveyor
Full "C" Axis Spindle Rotation
Live Milling Capability
Lower Turret Option
Tool Presetter
Fully Programmable Tailstock
High Power Coolant 213 PSI
Mill Tool Synchronous Tapping
Thread Point Start Compensation, Variable Feed Rate Control, Tool Life Monitoring,
Tool Wear Compensation, Mazak Tapping Tornado, 8 Figure Program Number
48 Alphanumeric Characters for Program Name, Backround Toolpath Check
Built In Premium Threading Function, Re-Threading Function, Deep Hole Boring
EIA/ISO Input Function, IC Memory Card Interface, Network Interface
