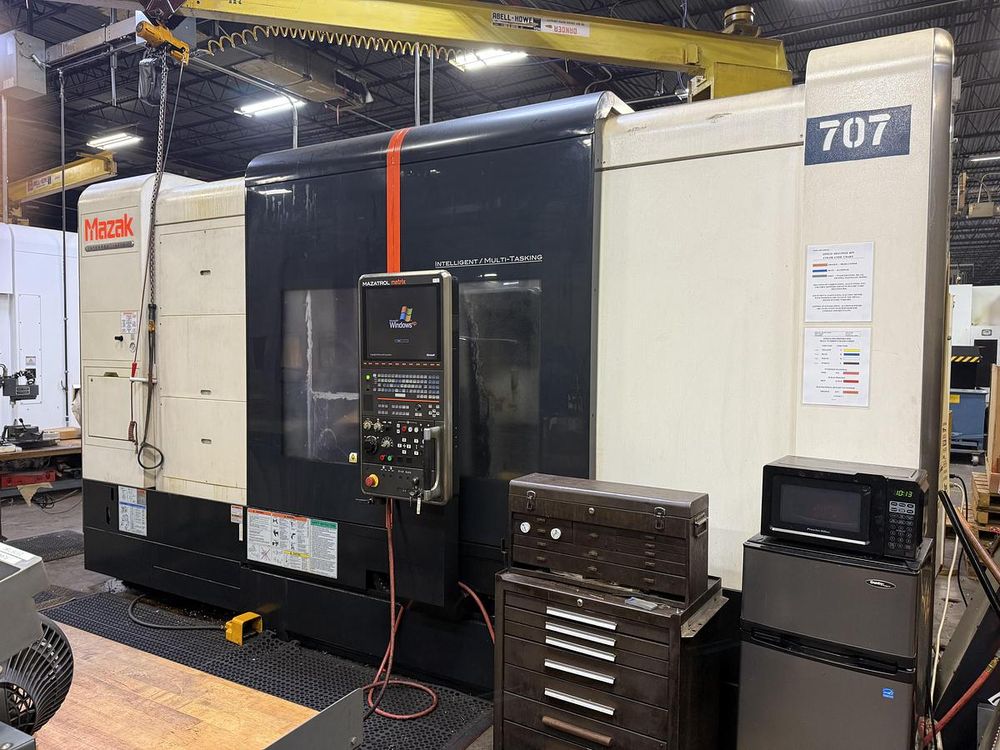

Mazak Mazatrol Matrix 4000 RPM E-420H II 4 Axis

Mazak E-420H II
Year 2011


Max Swing 26.38"
Max Swing over Carriage 26.38"
Max Cutting Dia 26.38"
Machining Length 54.43"
Max Bar Dia 3.03"
Main Spindle Speed 25 ~ 4000 RPM
Spindle Index 0.0001 deg
Main Spindle Power 30/40 HP
Magazine Capacity 120
Rotary Spindle Speed 35 ~ 12000 RPM
Rotary Spindle Motor 29.3 HP
B - Axis 240 Deg. (0.0001 Deg. increments, -30 Deg. to +210 Deg.)
X - Axis 33.27"
Y - Axis 16.54"
Z - Axis 54.65"
Floor Space 133.66" W x 199.61" L x 116.14" H
Weight 44092 LBS

Mazatrol Matrix
10" 3-Jaw Hydraulic Chuck
Shape Comp
Threading
Re-Threading
3-D Coordinate Rotation
Auto ATLM
Synch Mill Tapping
Chip Conveyor
Full complement of Tooling
