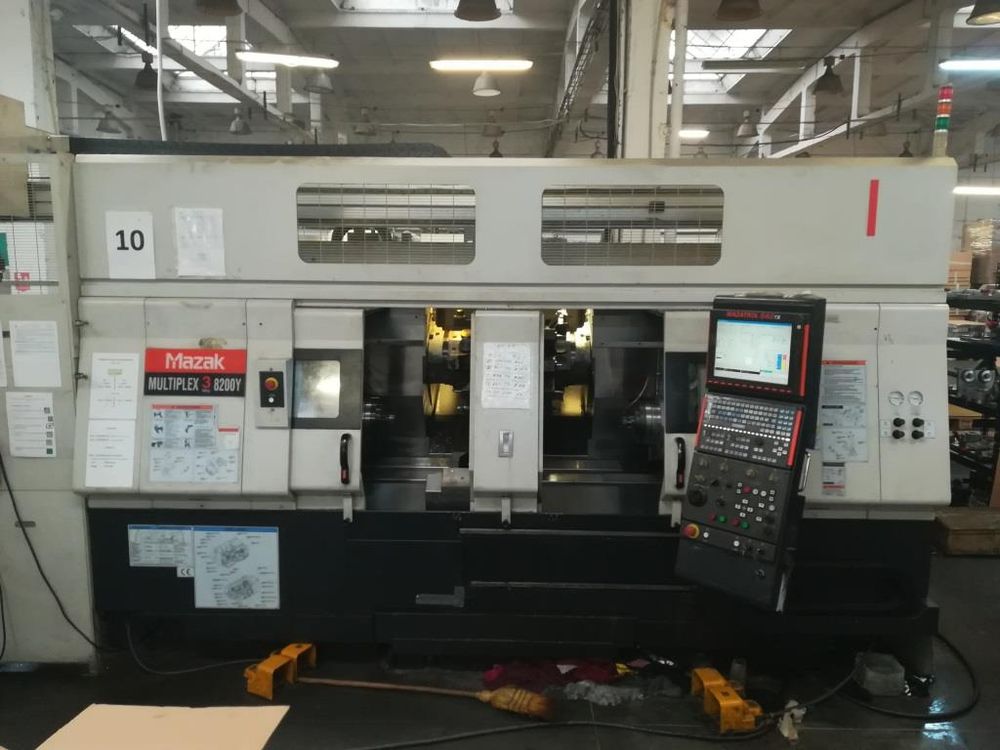

MAZAK Multiplex III 8200Y
2008

Max. machining diameter: 320 mm
Swing diameter over saddle: 320 mm
Max. workpiece weight with chuck: 300 kg
Max. workpiece weight between centers: 700 kg
Bar capacity: 65 mm
Number of spindles: 2
Spindle speed: 5000 rpm
Spindle motor power: 22 / 15 kW
Spindle bore: 76 mm
C-axis resolution: 0.0001°
Chuck: Kitagawa B-208 (Ø210 mm)
X1/X2-axis travel (upper): 275 mm
X3-axis travel (lower): 240 mm
Y1/Y2-axis travel: 100 mm
Z1/Z2-axis travel: 615 mm
Z3-axis travel: 946 mm
Rapid traverse speed: up to 50 m/min
Upper turret: 2×12 stations
Driven tools (upper turret): 4500 rpm, 5.5 kW (10 min)
Lower turret: 9 stations
Driven tools (lower turret): 6000 rpm, 3.7 kW (3 min)
Tool shank height: 25 mm
Boring bar diameter: 40 mm
Machine weight: 13,500 kg
Machine dimensions (L × W × H): 3880 × 2330 × 2050 mm
Power connection: 80 kVA
Gantry loader: Flex GL 100 with pallet conveyor
Tool eye
Partition wall
High-pressure coolant: 15 bar
Chip conveyor
