Mazak CNC CONTROL 4000 rpm QTN 250 MS 2 Axis

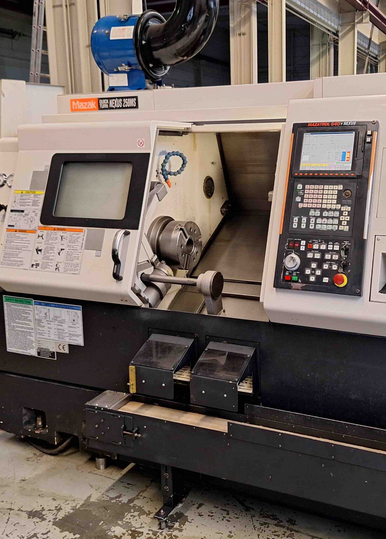

MAZAK QTN 250 MS
2004

Max. machining diameter: 380 mm
Swing diameter over carriage: 675 mm
Bar capacity: 77 mm
Distance between spindles: 541 mm
Travel X/Z: 230 / 575 mm
Rapid traverse X/Z: 30 / 33 m/min
Main spindle speed: 4000 rpm
Main spindle power: 22 / 26 kW
Main spindle bore: 88 mm
Sub spindle speed: 6000 rpm
Sub spindle power: 7.5 kW
Sub spindle travel: 585 mm
Tool turret stations: 12 with driven tools
Max tool speed: 4500 rpm
Tool motor power: 5.5 kW
Tool holder size: 25 mm height, 40 mm diameter
Machine weight: 5200 kg
Machine footprint (L x W x H): 285 × 187 × 187 cm
Short bar loader Multifeed MLI with interface
Two Kitagawa 3-jaw chucks (B-210 & B-206)
Automatic parts catcher with conveyor
Oil mist extraction system
High-pressure coolant 5 bar
Chip conveyor
