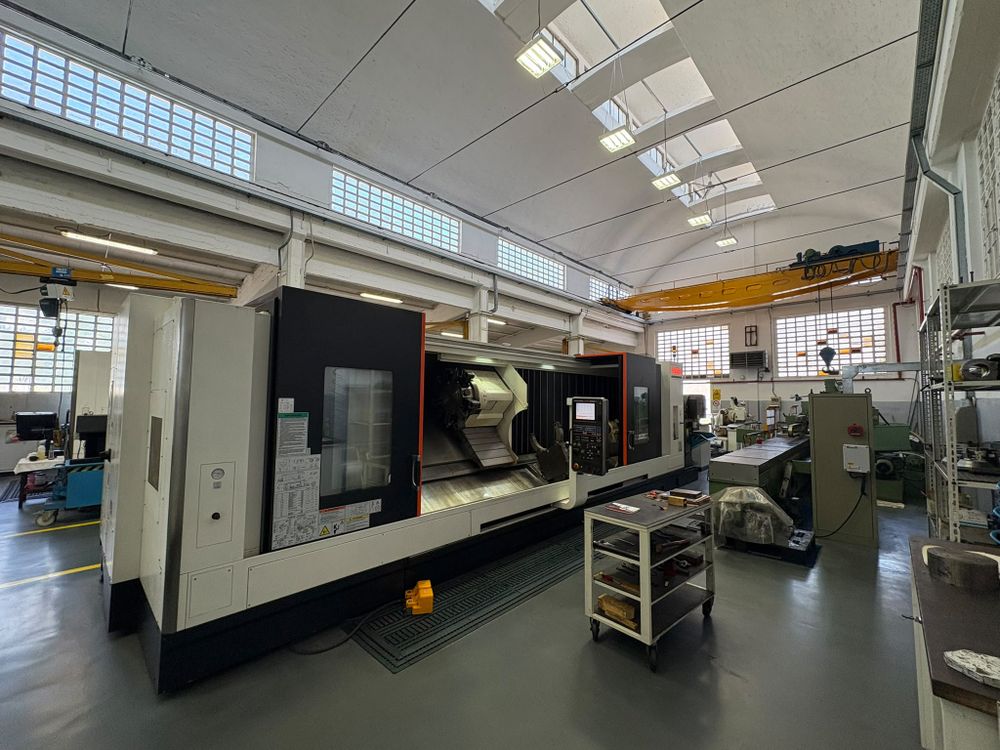

Mazak Mazatrol Matrix 2 1600 RPM SLANT TURN NEXUS 500 M (U3000) 3 Axis

X-Axis Travel: (not specified)
Z-Axis Travel: (not specified)
C-Axis Resolution: 0.0001°
Control: Mazatrol Matrix 2
Maximum Turning Diameter: 910 mm
Maximum Swing Diameter: 1040 mm
Maximum Turning Length: 4099 mm
Spindle Power: 45 kW
Spindle Speed: 1600 RPM
Maximum Torque: 7000 Nm
Spindle Bore: 185 mm
Milling Motor Power: 7.5 kW
Milling Speed: 4000 RPM
Tool Stations: 12
NC Tailstock
Tailstock Taper: MK6
Tailstock Feed Force Levels: 10
Tailstock Quill Stroke: 250 mm
SMW Autoblok K5.1ZSW Hydraulic Collet
Clamping Range: 100–410 mm
Kitagawa B24 3-Jaw Chuck
Chuck Diameter: 610 mm
Chuck Bore: 165 mm
Maximum Chuck Speed: 1400 RPM
Tool Setter for 24 in Chuck
Clamping Cylinder Bore: 116 mm
Mayfran ConSep 2000IIWS Chip Conveyor Coolant System
15 Bar Coolant Pump
Drum Filter
Overload Detection
3-Color Signal Lamp
Total Operating Time: Approx. 11000 h
Machining Time: Approx. 2700 h
