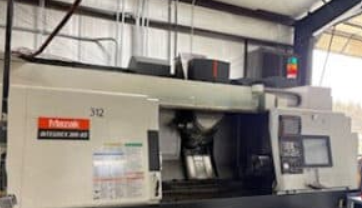

Mazak Mazatrol Fusion 640MT Pro 4,000 rpm INTEGREX 300-3S 5 Axis

Travel X: 24.8"
Travel Y: ±4.53"
Travel Z: 62.4"
Travel W: 60.24"
Sub C-axis
Control: Mazatrol Fusion 640MT Pro
EIA
Tool Eye
Maximum bar capacity: 3"
Maximum swing: 30"
Maximum swing using Y-axis: 26"–30"
Maximum swing over cross slide: 30"
Maximum cutting diameter: 30"
Maximum cutting length: 60"
Maximum distance between chuck faces: 60.2"
Main spindle speed: 4,000 rpm
Main spindle motor: 30/35 hp
Main spindle torque: 442.5 ft-lb
Main spindle nose: A2-8
Main spindle bore: 3.46"
Sub spindle speed: 4,000 rpm
Sub spindle motor: 30/35 hp
Sub spindle torque: 368.8 ft-lb
Sub spindle nose: A2-8
Sub spindle bore: 3.46"
Rotary tool spindle speed: 12,000 rpm
Rotary tool spindle motor: 24.8 hp
Rotary tool torque: 88.5 ft-lb
Tool magazine: 40 positions
Tool-to-tool change time: 1.3 sec
Maximum tool diameter (all pockets): 3.54"
Maximum tool diameter (adjacent pockets empty): 4.92"
Maximum tool length: 15.75"
Maximum tool weight: 22 lb
Chip conveyor
