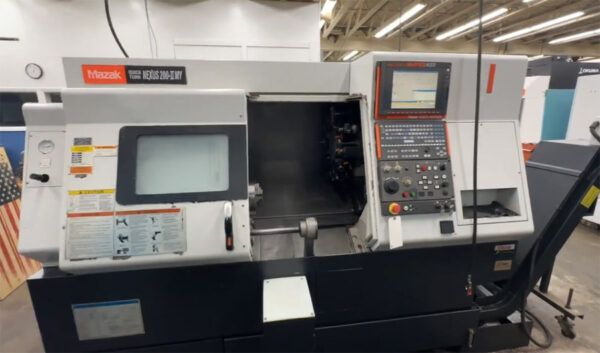

Mazak Mazatrol Matrix Nexus 5,000 RPM NEXUS 200MY-II 4 Axis

X-axis travel: 230 mm
Y-axis travel: 100 mm
Z-axis travel: 575 mm
C-axis: 555 RPM
Rapid traverse X/Y/Z: 30/21/33 m/min
Control: Mazatrol Matrix Nexus
Live tooling
Automatic tool presetter
Bar capacity: 65 mm
Maximum swing: 675 mm
Standard machining diameter: 276 mm
Distance between spindle nose and turret: 135–710 mm
Main spindle speed: 35–5,000 RPM
Main spindle motor power: 26 kW (35 HP)
Maximum spindle torque: 47.4 kgf·m
Spindle nose: A2-6
Spindle bore: 76 mm
Milling spindle speed: 25–4,500 RPM
Milling motor power: 5.5 kW (7.5 HP)
Maximum milling spindle torque: 3.6 kgf·m
Chuck size: 8 in
Royal Products CNC collet chuck
SMW Autoblok NCSE 210-52 quick-change 3-jaw power chuck
Programmable tailstock
Tailstock taper: MT5
Tailstock travel: 550 mm
Maximum tailstock thrust: 700 kgf
Side-exit chip conveyor
Machine weight: 12,500 lb
Power-on hours: 39,901 h
Automatic operation hours: 15,664 h
Automatic cutting hours: 10,757 h
Total cutting hours: 9,485 h
