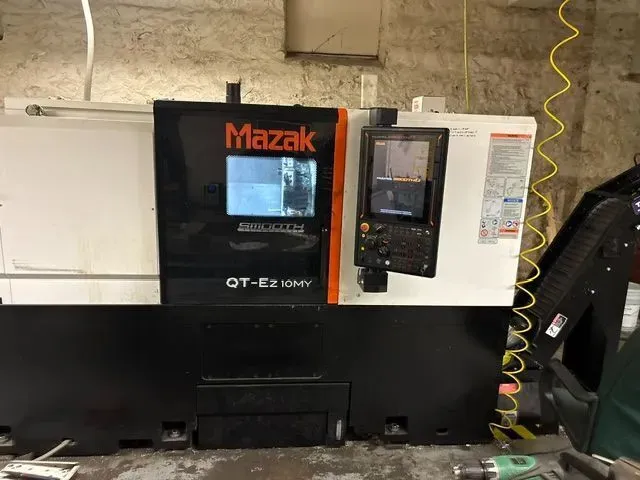

Mazak Mazatrol SmoothEZ CNC Color Control 4,200 RPM QT-EZ 10MY 4 Axis

X-Axis Travel: 8.5"
Y-Axis Travel: 4"
Z-Axis Travel: 23.75"
C-Axis Indexing: 0.00°
Control: Mazatrol SmoothEZ CNC Color Control
Automatic Tool Eye
Programmable Tailstock
Swing Over Bed: 21.45"
Turning Diameter: 16.53"
Turning Length: 22.05"
Bar Capacity: 3"
Spindle Bore: 3.58"
Spindle Nose: A2-8
Spindle Speed: 4,200 RPM
Spindle Motor: 20 HP
Turret Milling Speed: 6,000 RPM
Turret Milling Motor: 7.5 HP
Rapid Traverse (X): 1181 IPM
Rapid Traverse (Y): 472 IPM
Rapid Traverse (Z): 1299 IPM
Chuck Size: 10"
Turret Capacity: 12 Station
Tailstock Travel: 21.75"
Weight: 12000 lbs
Cutting Hours: 1700

Features

Kitagawa 10" 3-Jaw Hydraulic Chuck
Chip Conveyor
3 O.D. Milling Holders
3 I.D. Milling Holders
EIA Programming
3D Compensation
Rotation Function
Geometric Compensation
Scaling
External Data I/O
Auto Tool Measurement
G54.1
Synchronous Mill Tapping
Variable 600 Sets
EIA Helical Interpolation
Tap Cycles
Pattern Cycles
Thread Cycles
Inverse Time
Polar Coordinate Input
Cylinder Function
Comparison Stop
Tilted Work Plane
