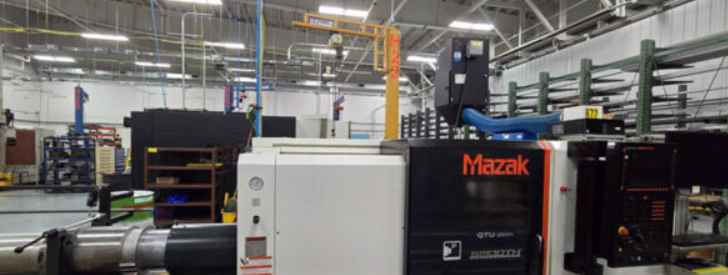

Mazak MAZATROL SmoothC CNC Control 4500 RPM QTU-250M 2 Axis

X-Axis Travel: 8.25"
Z-Axis Travel: 23.75"
MAZATROL SmoothC CNC Control
EIA/ISO Conversion
Inch/Metric Conversion
MT Connect
Optional Block Skip
Bar Feeder Interface
Maximum Bar Capacity: 2.00"
Maximum Swing: 27.4"
Standard Machining Diameter: 8.35"
Maximum Machining Diameter: 13.50"
Maximum Distance Between Spindle End and Turret End: 27.0"
Maximum Spindle Speed: 4500 RPM
Spindle Motor: 20/15 HP
Spindle Nose: A2-6
Spindle Bore: 3"
Milling Spindle Speed: 4500 RPM
Milling Spindle Motor: 7.3 HP
12-Station Turret
Tool Capacity: 12
Auto Part Catcher
Mist Collector
Mist Collector Interface
High-Pressure Coolant: 213 PSI
Chip Conveyor
Pneumatic Unit
Tool Eye
4-Color Signal Lamp
LNS Bar Feeder
