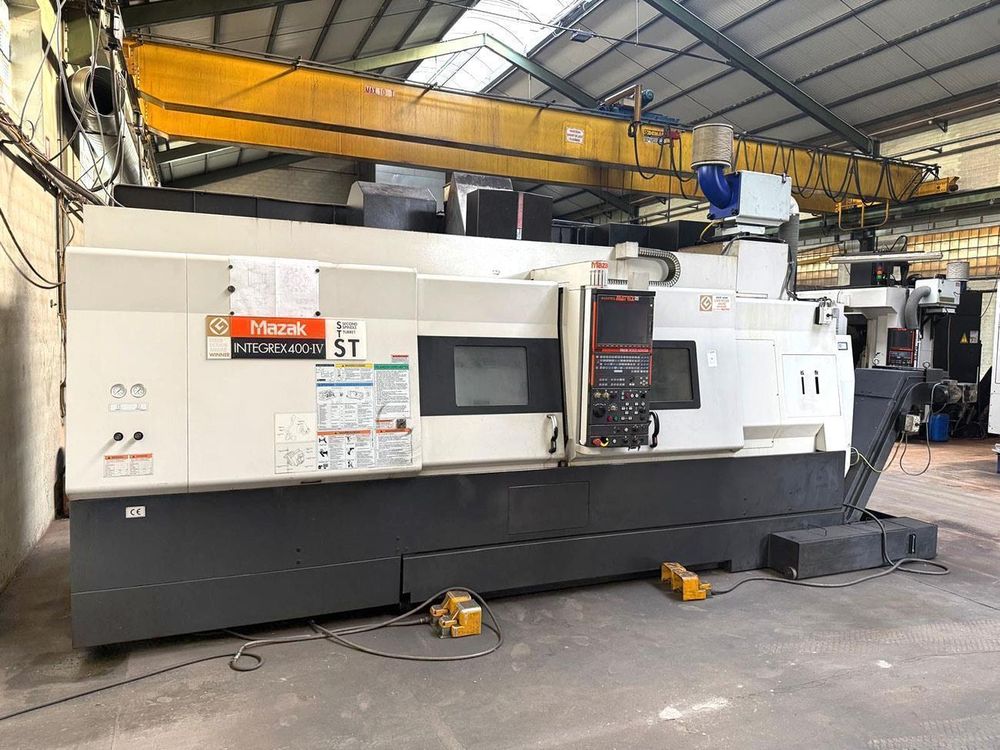

Mazak Mazatrol Matrix 3300 rpm INTEGREX 400-IV ST 6 Axis

X-axis travel: 615 mm
Y-axis travel: 250 mm
Z-axis travel: 1585 mm
X2-axis travel: 230 mm
Z2-axis travel: 1388 mm
B-axis: -30° to 210°
Control: Mazatrol Matrix
Swing over bed: 760 mm
Distance between centers: 1519 mm
Spindle bore: 112 mm
Spindle nose: A2-8
Spindle speed: 3300 rpm
Spindle motor: 30/22 kW
Sub spindle bore: 91 mm
Sub spindle speed: 4000 rpm
Sub spindle travel: 1574 mm
Sub spindle motor: 26/22 kW
Milling spindle speed: 12000 rpm
Milling spindle torque: 120 Nm
40-position automatic tool changer
9-position lower turret
Total power: 91 kVA
Machine dimensions: 5200 × 2800 × 2720 mm
Machine weight: 17 ton
5-axis simultaneous machining
