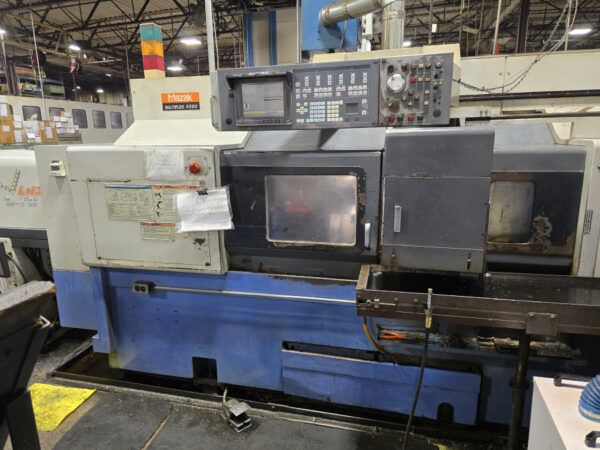

Mazak Mazatrol Fusion 640T 4,000 RPM MULTIPLEX 4300 2 Axis

MAZAK MULTIPLEX 4300
2002

Maximum swing: 16.93"
Standard cutting diameter: 13.0"
Maximum bar diameter: 3.0"
Distance between spindle faces max.: 57.07"
Distance between spindle faces min.: 9.82"
Spindle nose: A2-8
Spindle bore: 3.46"
Spindle speed: 4,000 RPM
Spindle horsepower (30 min.): 30 HP (AC)
Spindle torque: 441.34 ft.-lbs.
Turret type: Dodecagonal / Drum Non-Lift
Tool holder shanks: Modified VDI
Turret index time (1 step): 0.3 sec
Total number of tools: 24 (12×2)
Tool size (turning & facing): 1" x 1"
Tool size (boring bar max. dia.): 2"
X-axis travel (L&R): 12.2"
Z-axis travel (L&R): 23.82"
X-axis rapid traverse: 945 IPM
Z-axis rapid traverse: 945 IPM
Machine floor space (W x L): 95.3" x 167.7"
Machine height: 82.68"
Total power required: 66 KVA
Air requirements: 71 psi / 14 CFM
Total machine weight: 25,600 lbs
Control: Mazatrol Fusion 640T
Barfeed: LNS Quick Load
Tool eye: Included
Turrets: Twin
Spindles: Twin
