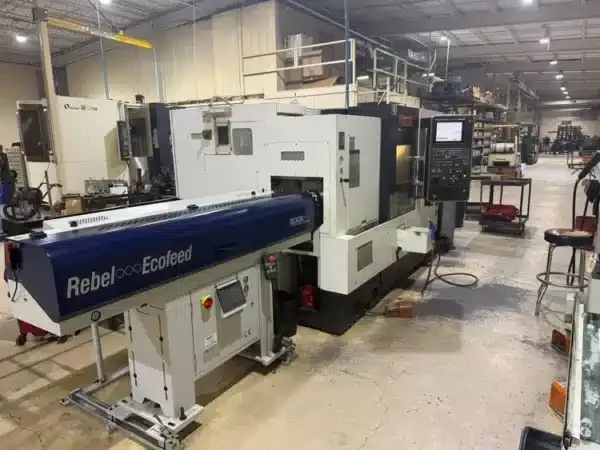

Mazak Mazatrol Matrix 4000 rpm NEXUS 250-II / QTN-250-II 2 Axis

Number of axes: 2
X-axis travel: 7.5 in
Z-axis travel: 22 in
X-axis rapid traverse: 1,181 in/min
Z-axis rapid traverse: 1,181 in/min

Control and Features
CNC control: Mazatrol Matrix
Tool presetter
Parts catcher
Chip conveyor

Bar Capacity and Swing
Bar capacity: 3 in
Maximum swing over bed: 26.5 in
Maximum distance between centers: 22 in

Spindle Specifications
Spindle speed: 4,000 rpm
Spindle power: 35 hp
Spindle nose: A2-8

Chuck and Tooling
Chuck type: Collet chuck
Number of turrets: 1
Turret positions: 12

Additional Equipment
Tailstock
Tailstock travel: 17.6 in
Bar feeder: Edge Technologies Rebel EcoFeed
Machine dimensions: 108 x 74 x 75 in
Machine weight: 11,000 lb
