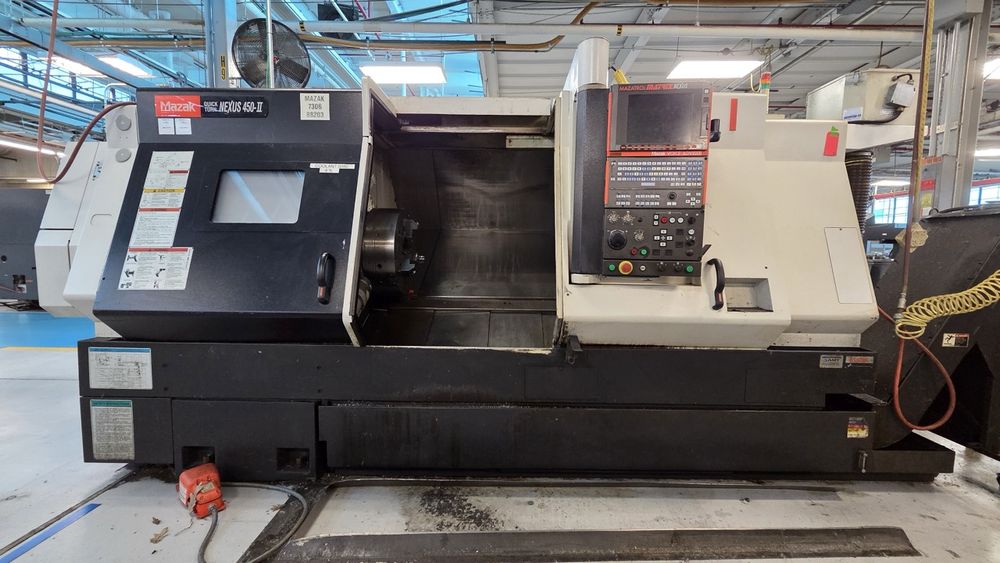

Mazak Mazatrol Matrix CNC 2000 rpm QTN 450-II 2 Axis

X axis travel: 13.38 in
Z axis travel: 42.12 in
Control: Mazatrol Matrix CNC
Tailstock
Tool setter
High-pressure coolant
Mist collector
Bar capacity: 6.5 in
Maximum swing: 33.26 in
Maximum turning diameter: 22.83 in
Maximum turning length: 48 in
Maximum shaft diameter: 18.25 in
Maximum distance between centers: 40 in
Spindle bore: 7 in
Spindle nose: A2-15
Spindle speed: 2000 rpm
Spindle motor: 50 HP
Rapid traverse X axis: 1181 ipm
Rapid traverse Z axis: 1181 ipm
Chuck size: 19 in
Turret: 24 stations
Tailstock center: MT5
Tailstock travel: 32.5 in
Machine dimensions: 144 × 90 × 80 in
Machine weight: 19000 lb
Chip conveyor
