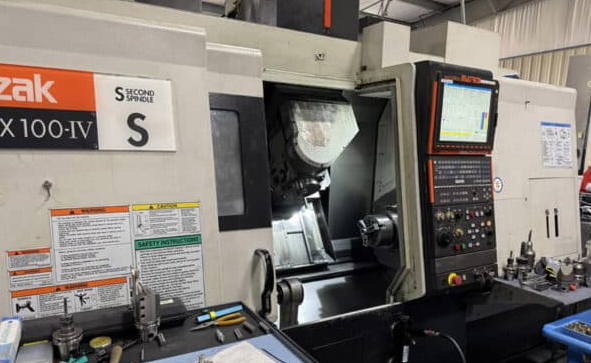

Mazak Mazatrol Matrix CNC Control 6000 RPM INTEGREX 100-4S 5 Axis

X-Axis Travel: 16.14"
Y-Axis Travel: ±2.75"
Z-Axis Travel: 31.69"
W-Axis Travel: 31.3"
B-Axis: 225°
Control: Mazatrol Matrix CNC Control
Maximum Bar Work: 1.6"
Maximum Swing: 21.46"
Maximum Swing Using Y-Axis: 16.22"-21.46"
Maximum Swing Over Cross Slide: 13.86"
Maximum Cutting Diameter: 21.46"
Maximum Cutting Length: 29.65"
Maximum Distance Between Chuck Faces: 31.18"
Main Spindle Nose: A2-5
Main Spindle Bore: 2.4"
Main Spindle Speed: 6000 RPM
Main Spindle Power: 10/15 HP
Main Spindle Index: 0.0001°
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4"
Sub Spindle Speed: 6000 RPM
Sub Spindle Power: 10/15 HP
Sub Spindle Torque: 119 ft-lbs
Sub Spindle Index: 0.0001°
Rotary Tool Spindle Speed: 12000 RPM
Rotary Tool Spindle Power: 7.5 HP
Magazine Capacity: 40 Tools
ATC Tool Shank: Mazak KM63
