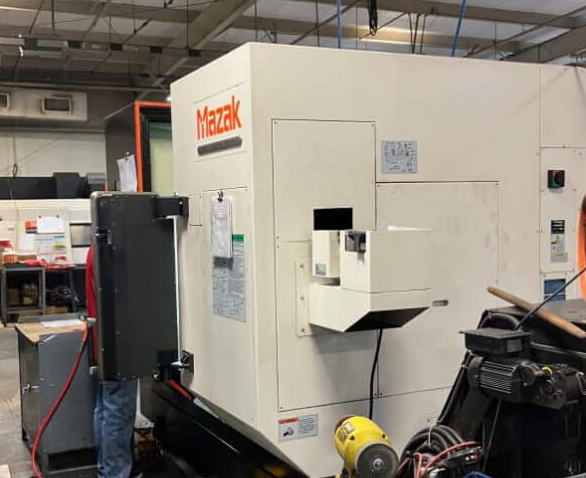

Mazak Matrix 5000 RPM HYPER QUADREX 150MSY 2 Axis

PC
Chip
Maximum Bar Work: 2.0"
Maximum Swing Over Upper Turret: 12.6"
Maximum Swing Over Lower Turret: 10.63"
Maximum Machining Diameter Chucking Upper: 11.625"
Maximum Machining Diameter Chucking Lower: 6.61"
Maximum Distance Between Chuck Jaws: 24.375"
Main Spindle Nose: A2-6
Main Spindle Bore: 2.99"
Main Spindle Speed: 35-5000 RPM
Main Spindle Power: 15/20 HP
Main Spindle Torque: 172 ft-lbs
Main Spindle Index: 0.0001°
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4"
Sub Spindle Speed: 35-6000 RPM
Sub Spindle Power: 10/15 HP
Sub Spindle Torque: 119.5 ft-lbs
Sub Spindle Index: 0.0001°
Rotary Tool Spindle Speed: 35-6000 RPM
Main Spindle Chuck: 6"
Turret Type: 12 Position Drum VDI
Total Number of Tools: 12
Tool Shank Height: 3/4"
Boring Bar Capacity: 1.25"
Tool Selection Method: Bi-Directional
Tool Index Time: 0.2 sec
