Mazak Mazatrol Matrix CNC control 6000 RPM INTEGREX 100-IV ST 8 Axis

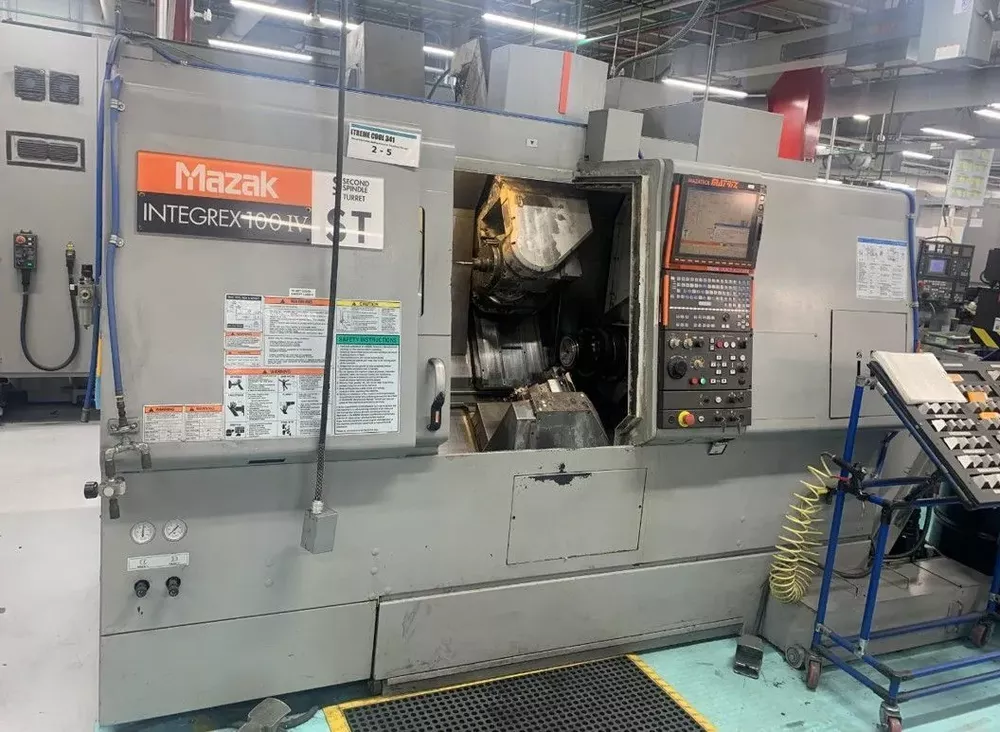

MAZAK INTEGREX 100-IV ST
2009

2" collet chuck size (main/sub)
21.46" max swing
16.22"–21.46" max swing using Y-axis
13.86" max swing over cross slide
21.46" max cutting diameter upper
29.65" max machining length
28.9" max distance between chuck faces

16.14" X-axis travel
±2.75" Y-axis travel
31.69" Z-axis travel
8.66" X2-axis lower travel
30.71" Z2-axis lower travel
225° B-axis travel pendulum head
0.0001° C-axis spindle movement (both spindles)
31.3" W-axis travel (sub spindle)

A2-5" spindle nose
2.4" spindle bore
2" bar capacity
6000 RPM main spindle speed
15 HP AC main spindle motor

1-position upper turret with ATC
40-position magazine capacity
CAT 40 tool holder
7.5 HP rotary tool spindle
12000 RPM rotary tool spindle speed
9-position lower turret
Drum type lower turret

Approx. machine dimensions 12' x 92" x 89"
Machine weight 16,940 lbs
Mazatrol Matrix CNC control
Synchronized tapping
Inch/metric conversion
EIA/ISO code input function
3D coordinate conversion
Absolute positioning system
XYZ pitch error compensation input
EIA dynamic compensation
Mazacc-3D high-speed software package
Tool tip point control
Tool radius compensation

C1+C2 synchronous function
Royal auto chuck on main spindle
Royal auto chuck on sub spindle
Thru-spindle coolant
213 PSI coolant pressure
Chip conveyor
