Mazak Mazatrol Matrix Nexus CNC control 3,300 RPM NEXUS QTN 350II/1500 2 Axis

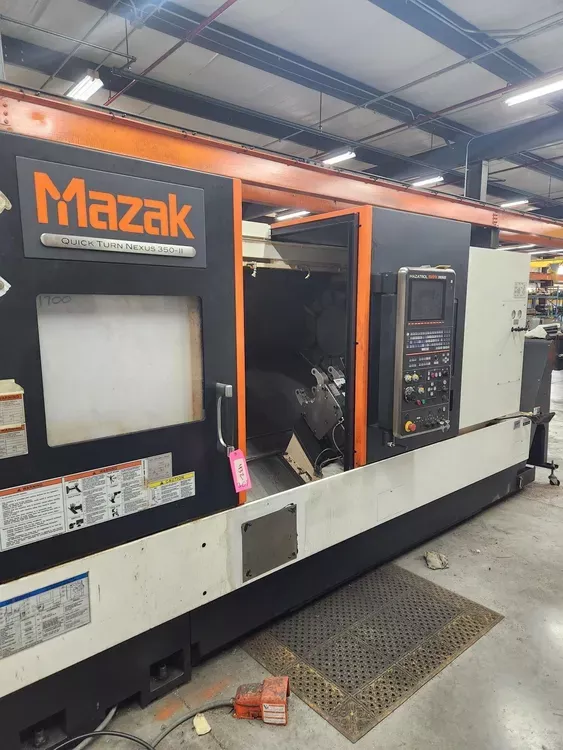

MAZAK NEXUS QTN 350II/1500
2013

26.8" swing over bed
16.5" turning diameter
62" machining length
64" distance between centers
12" chuck size
A2-11 spindle nose
4.4" spindle bore diameter
4" spindle bar capacity
3,300 RPM spindle speed
2 gear ranges
40 HP spindle motor
530 ft-lbs spindle torque
10.63" X-axis travel
59.03" Z-axis travel
787 ipm X-axis rapid traverse
984 ipm Z-axis rapid traverse
12-position turret
3.94" tailstock quill diameter
MT5 tailstock taper
Programmable tailstock
55.8" tailstock travel
14,600 lb machine weight
Mazatrol Matrix Nexus CNC control
Windows operating system
EIA/ISO compatibility
High pressure coolant 59 psi
LNS Quick Load Servo S3 barfeeder
LNS/SMW SLU-X-3 tandem steadyrest with independent actuation
12" thru-hole hydraulic 3-jaw chuck with 4" hole
Auto parts catcher
Live quill
Dead center
MultiTap transformer
Chip conveyor
ATLM
