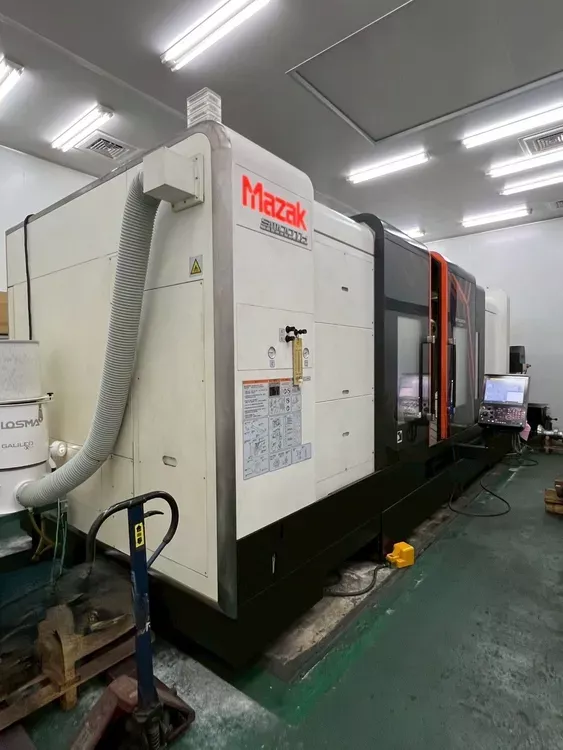

Mazak MAZATROL SMOOTH G CNC COLOR CONTROL 2,500 RPM INTEGREX E-420HII 5 Axis

X1 - Axis Travel 33.2"
Z1 - Axis Travel 122.5"
Y1 - Axis Travel 16.5"
C - Axis Indexing 0.00
B - Axis Head Indexing -30.2

Rapid Traverse Rate - X1 1970 ipm
Rapid Traverse Rate - Z1 1576 ipm
Rapid Traverse Rate - Y1 1970 ipm

Control MAZATROL SMOOTH G CNC COLOR CONTROL
Swing Over Bed 26.3"
Turning Diameter 26.3"
Distance Between Centers 126.3"
Bar Capacity 4"
Chuck Size 15"

Spindle Nose A2 - 11
Spindle Bore Diameter 4.6"
Spindle Speeds 2,500 RPM
Spindle Horsepower 40 hp

B - Axis Milling Spindle Taper 40 BT
B - Axis Milling Spindle Speed 12,000 RPM
B - Axis Milling Spindle Horse Power 30 hp

ATC For Milling Spindle 80
Tool Diameter 3.7"
Tool Length 15.7"
Tool Weight 26.4 lb
Tailstock Taper 5
Programmable Tailstock Yes
Tailstock Travel 119.4
Machine Weight 48,400 lb
Chip Conveyor
Renishaw Probing

Mazak High Pressure Coolant Thru Spindle
Mist Collector
Auto Tool Measurement
Spindle Chiller
Coolant Thru Mill Head
Y Axis Control
.0001 Degree B-Axis Indexing
B - Axis 0.0001 Contouring

EIA, Spiral, EIA 3D Comp, Rotation, Geometric, Scaling, EXT DATA I/O
Hob, Shape Comp, Thread Inverse Time, 3-D Coord Rotation, Auto ATLM
Comparison Stop, G54.1, Sync Tap, Flash Tool, I/M Conv., Cylinder
Rotary Axis Sub Micron, Macro 600 Sets
Simultaneous 5 Axis
Navigation, EIA Helical Tap, Mazatrol Helical, Mazatrol Planet Tap
Tool Center Point Control
Programmable Hydraulic Steady Rest SMW K4-ZSW 2.0" - 11" Capacity
