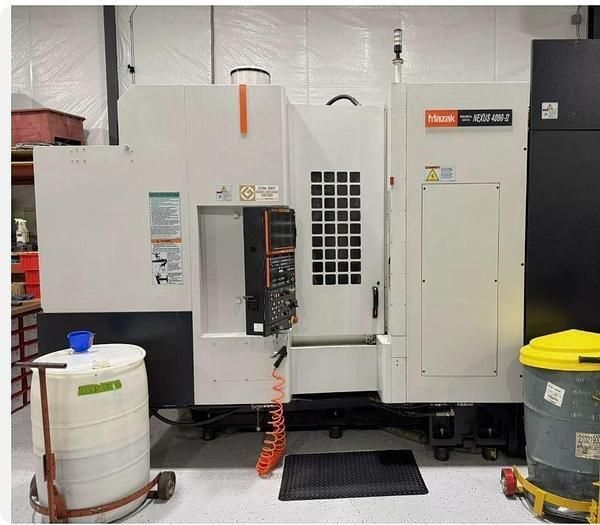

Mazak Nexus HCN-4000-II 4 Axis

Mazak Nexus HCN-4000-II
2008

Table/Pallet: Width 15.7
Length 15.7
Number of Table/Pallet(s) 2
Indexing 360,000 °
Maximum Load 880 lbs

Travels: X-Axis Travel 22.05
Y-Axis Travel 25.2
Z-Axis Travel 25.2

Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 18000 rpm
Spindle Taper CAT 40
Main Motor (HP) 30 hp

Tool Changer: Tool Changer Positions 60 atc
Maximum Tool Diameter 5.91
Length 14.17
Weight 26.5 lbs

Rapids: Maximum Traverse Rate 1968 IPM
Dimensions: Length x Width 164" x 106
Height 104
Weight 21,000 lbs

Equipped With:
Mazatrol Matrix Nexus 4-Axis CNC Control
(2) Pallet Factory Changer
Full 4-Axis
Super Flow Variable Speed High Pressure Coolant Thru Spindle - 1000 psi
60 Position Tool Changer
Chip Conveyor
Renishaw OMP60 Work Measuring Probe System
Auto Tool Length Measurement - Tool Probe
18,000 RPM Spindle
Manual Pulse Generator
EIA Input Function
Synchronous Tapping
USB Port
RS232 Port Interface
Multi-Tap Transformer
All Available Manuals
