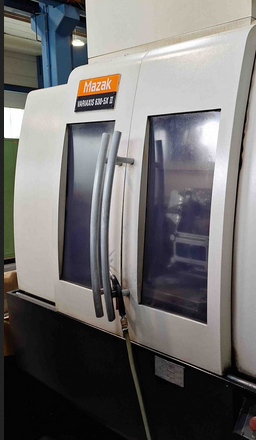

Mazak VARIAXIS 630-5X II 5 Axis

MAZAK VARIAXIS 630-5X II
Year: 2007

Travel X/Y/Z: 630 / 765 / 510 mm
A-axis swivel range: +30° to -120°
C-axis rotation range: ±360°
Table size: 500 × 500 mm
Table load capacity: 500 kg
Indexing table accuracy: 0.0001°
Distance spindle nose to pallet center: 230 – 740 mm
Spindle speed: 12,000 rpm
Spindle torque: 172 Nm
Spindle motor power (15 min / 100%): 22 / 15 kW
Tool changer capacity: 80 tools
Tool holder: SK 40
Max. tool diameter: 80 mm (125 mm with free adjacent slots)
Max. tool length: 300 mm
Max. tool weight: 8 kg
Control: Mazatrol Matrix with EIA / ISO support
2-pallet changer
Renishaw probe
5-axis simultaneous machining
High-pressure through-spindle coolant: 15 bar
Chip conveyor: Mayfran ConSep
