Mazak VORTEX E1060V/8 5 Axis
AMERICA North (USA-Canada-Mexico)

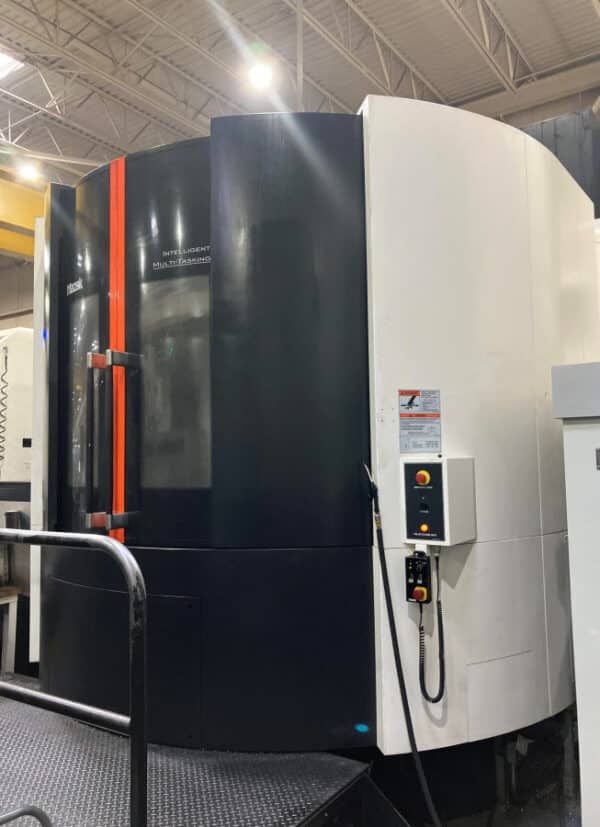

MAZAK VORTEX E1060V/8
2014
X-axis travel 73.82"
Y-axis travel 41.73"
Z-axis travel 52.95"
B-axis rotation -30° to 120° (full contouring)
C-axis rotation 360° (.0001° increment)
Pallets (2) 39.4" x 39.4"
Maximum workpiece dimensions 49.21" x 49.21"
Maximum workpiece weight 4,784 lbs
Milling spindle speed 10,000 RPM (2 windings)
Spindle taper CAT 50
Milling spindle horsepower 50 HP intermittent / 40 HP continuous
Turning spindle speed 500 RPM
Turning spindle horsepower 50 HP intermittent / 40 HP continuous
Tool changer capacity 120
Minimum tool diameter 5.31"
Maximum tool diameter 10.24"
Maximum tool length 19.69"
Maximum tool weight 66 lbs
Rapid traverse (X/Y/Z) 1,653 IPM
B-axis speed 30 RPM
C-axis speed 18 RPM
Machine weight 85,800 lbs
Mazatrol Matrix 2 CNC control with 15" display
1000 PSI through-spindle coolant with Mazak Superflow V8M
Manual pulse generator (detachable)
Two-pallet changer
Tool eye automatic
ConSep chip conveyor system
Coolant washdown at operator and pallet load stations
Heidenhain linear scales on X, Y, Z axes
Spindle air blow
Power indexing at work load station
Renishaw NC4 laser tool measurement
Renishaw H/V OMP60 probe
Hydraulic pressure interlock
Auto power on/off/warm-up
8MB program storage
LAN and modem preparation
Mill spindle synchronous tapping
Background tool path check
Tool breakage detection
Adaptive feedrate control
Tool life monitoring
Renishaw advanced probe macros / Inspection Plus
3D coordinate rotation G68.2
EIA simultaneous 5-axis
Tool tip point control 5-axis
Simultaneous 5-axis tool radius compensation
G00 slope constant
2D software shape continuous
Shape continuous rotary axis
Inch / metric conversion
Cylindrical G07
Polar coordinate G12
Mazacc-3D high speed software package
High smoothing control
Additional EIA / ISO function
All available manuals
