Mazak Variaxis C-600 5

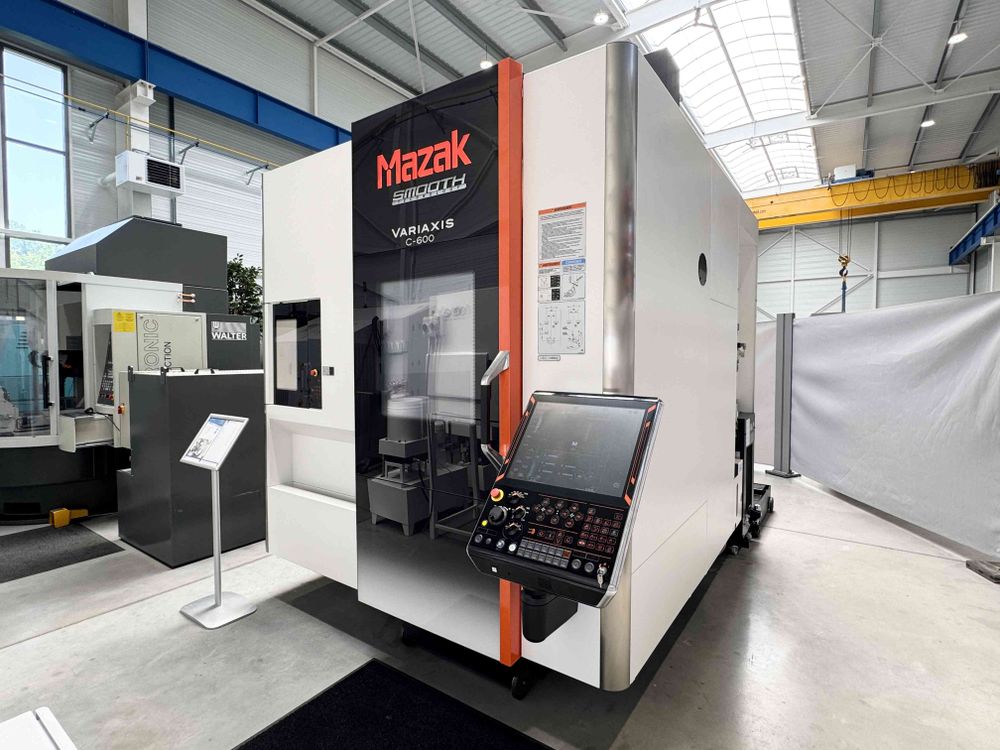

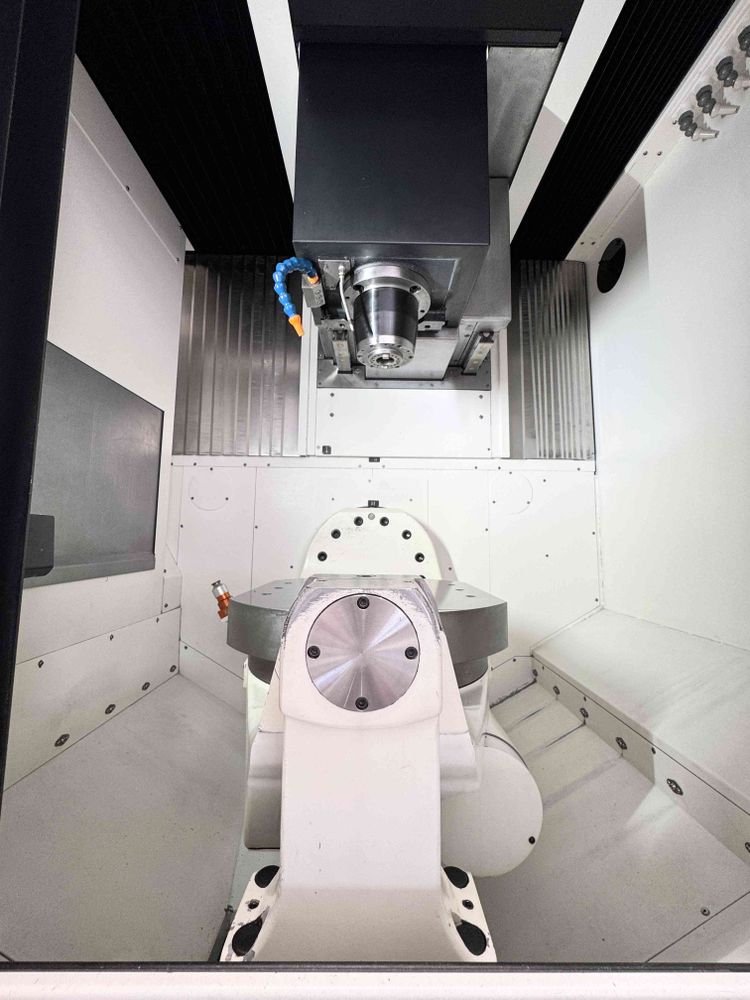

CNC Machining Center Mazak Variaxis C-600



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2020

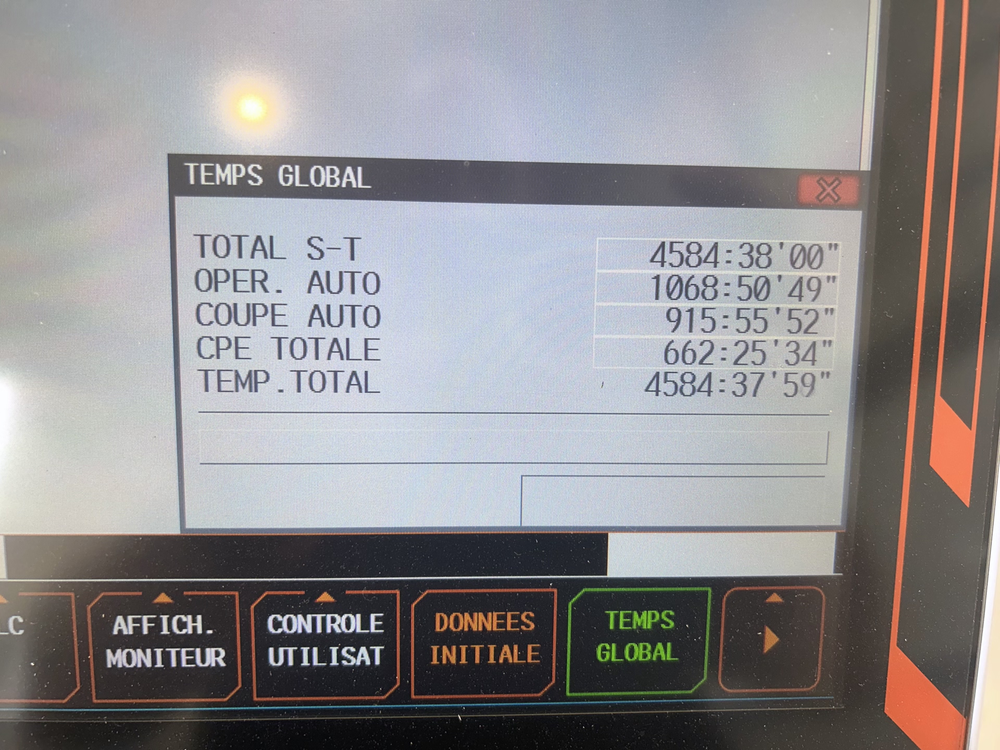

Number of running hours: 916 [h]
Number of simultaneous axes: 5
Stroke X axis: 650 [mm]
Stroke Y axis: 550 [mm]
Stroke Z axis: 530 [mm]
Feed rate on X, Y and Z axes: 42000 [mm/min]
Min. distance spindle nose / table: 50 [mm]
Max. distance spindle nose / table: 580 [mm]

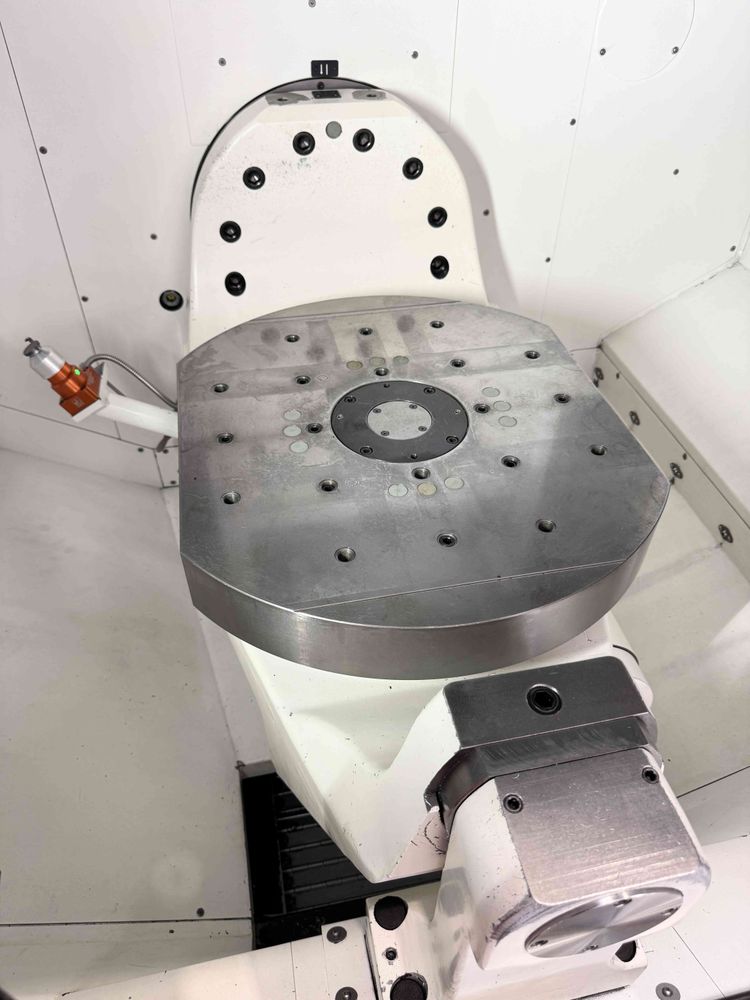

Table dimensions: Ø600 x 500 [mm]
Max. load on table: 500 [Kg]

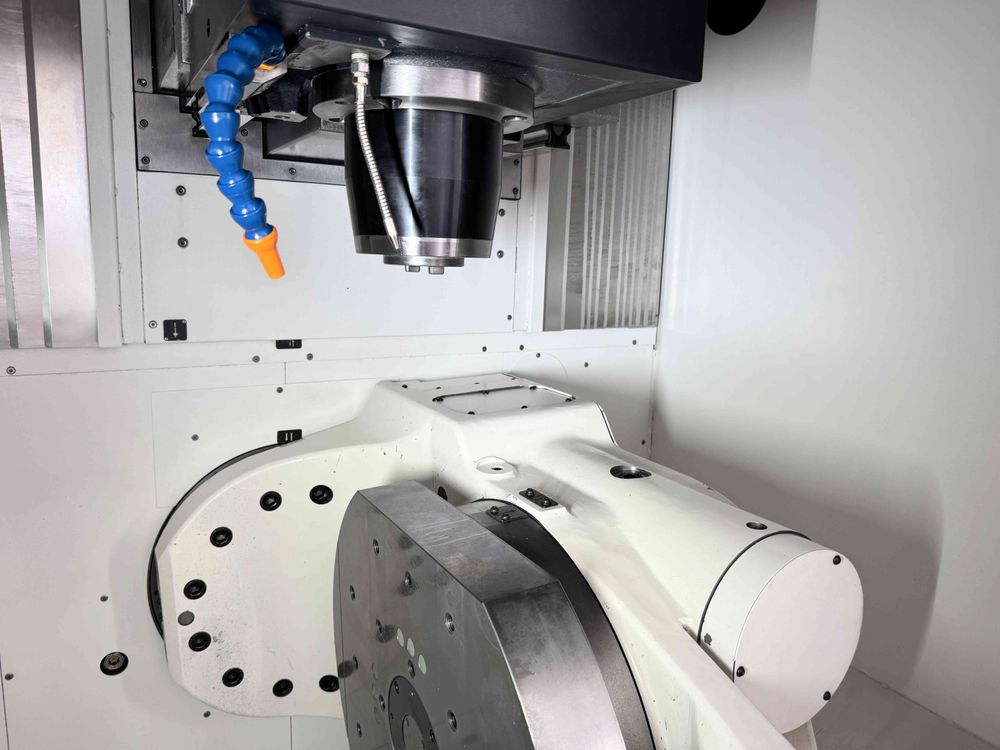

Stroke C axis : table revolution: 360 [°]
B axis swivelling stroke: -30 [°] / +120 [°]
Spindle type: BT40
Max. spindle speed: 12000 [rpm]
Spindle power: 11 [kW]
Tool changer magazin number of stations: 60
Max. tool length: 300 [mm]
Max. weight of single tool: 8 [Kg]
Max. tool diameter: 80 - 130 [mm]
Total power required: 46.7 [kVA]
Supply voltage: 400 [V]
Machine dimensions: 2350 x 2962 x 3039 [mm]
Layout dimensions: 5010 x 2470 [mm]
Weight: 10000 [Kg]


EQUIPMENT INCLUDED:

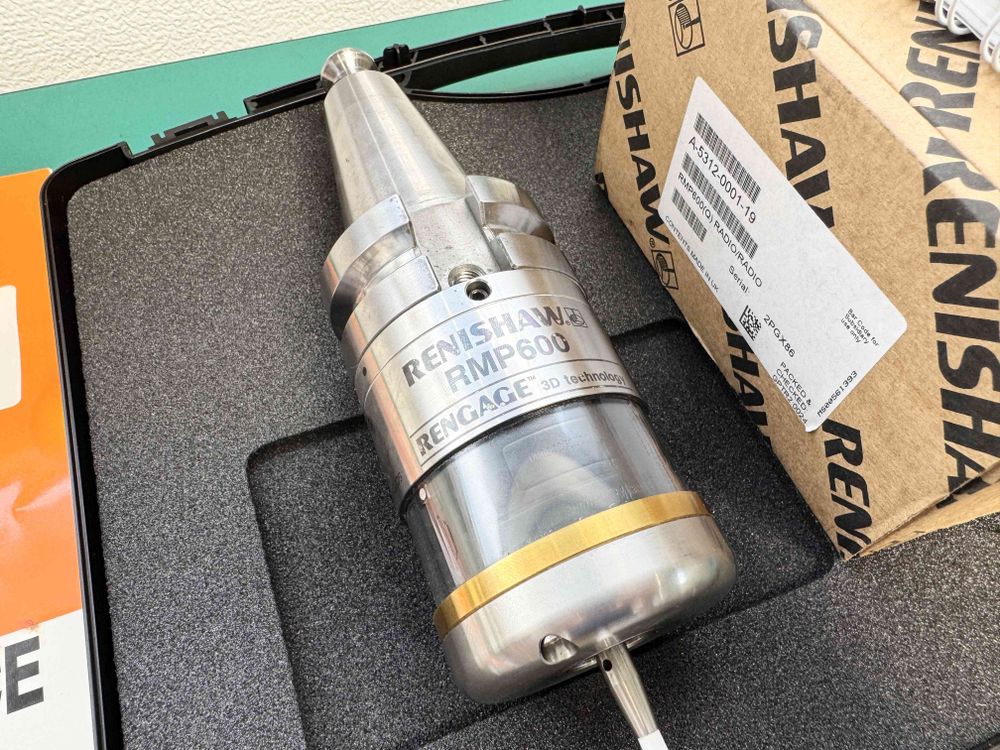

x1 RENISHAW part probe type RMP600

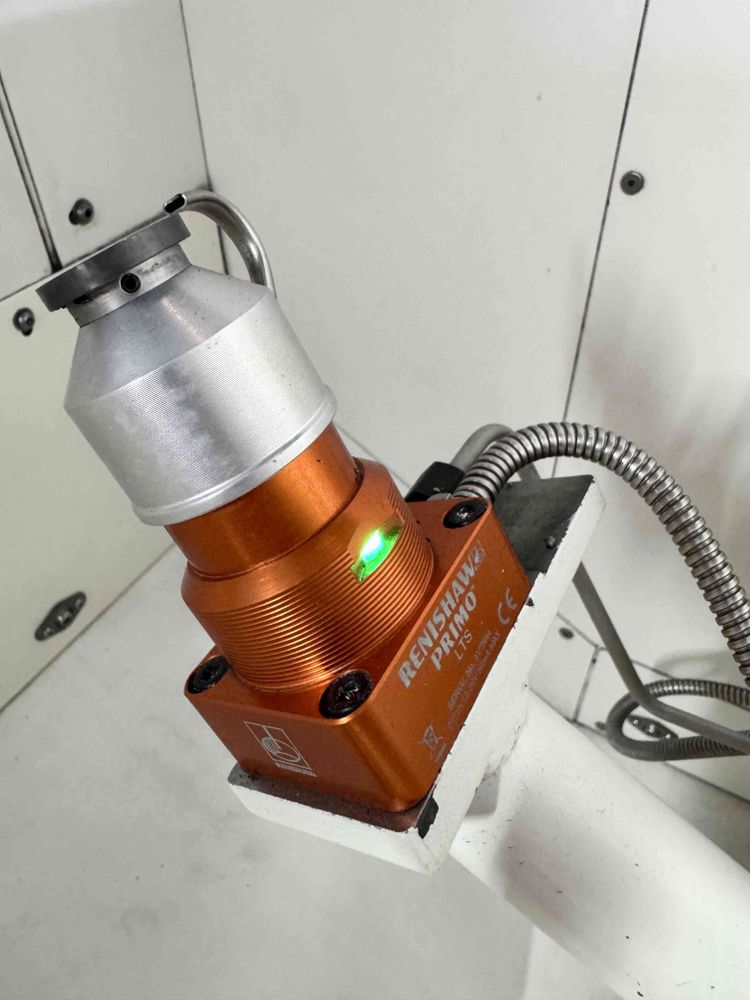

x1 RENISHAW tool probe type PRIMO LTS
x1 RENISHAW calibration sphere
x1 electronic handwheel
x1 chip conveyor
x1 high-pressure pump 15 [bar]



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
