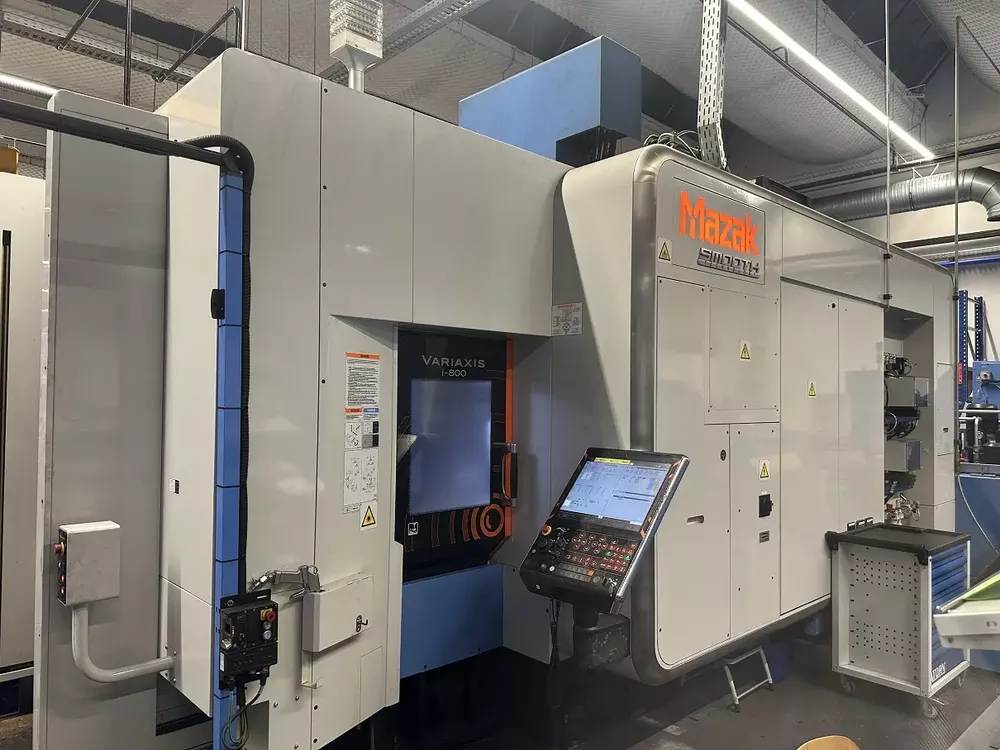

Mazak VARIAXIS i-800 + VC PRIMOS 400 L 5 Axis

X-axis: 730 mm
Y-axis: 800 mm
Z-axis: 560 mm
A-axis: -120° to +30°
C-axis: +-360°
Rapid traverse (X/Y/Z): 42 m/min
Rapid traverse (A/C): 50 rpm
X-axis (VC PRIMOS): 500 mm
Y-axis (VC PRIMOS): 400 mm
Z-axis (VC PRIMOS): 350 mm
Smooth X control
Mazatrol Smooth C
CELLRO ELEVATE E-110-165 Robot cell
Fanuc robot R-2000 165F iC
Pallet changer (2 pallets)
5-axis simultaneous machining
Electronic handwheel
Panel for Tool-ID
Coolant gun
Knoll-Coolant system KF400/2300
Paper belt filter
High-pressure pump 70 bar
Knoll chip conveyor
Renishaw NC4 laser
Mazak Monitoring B
Renishaw RMP600 probe
Tool breakage monitoring (TBR)
Mazak monitoring system (MMS)
Automatic workpiece coolant flushing
Mazak API
Smooth synchronized tapping
Auto pecking cycle with load detection
Engraving function
Robot interface (Advance/Profibus)
Profibus-DP
Automatic door
Oil mist lubrication
Renishaw OMP40 probe
High Sensitive Collision Detection
Auto Singularity Avoidance
SoftFloat
DCS Position / Speed Check Function
Workpiece turning station
Workpiece measuring station
Air outlet station
Table size: 600 x 400 mm
Max. table load: 300 kg
Max. spindle speed: 10,000 rpm
SK-50 holder DIN 69871
Milling spindle AC 11 kW (VC PRIMOS)
Max. spindle speed: 12,000 rpm (VC PRIMOS)
Air flow through rotating spindle
Tool magazine: 120 tools
BT30 taper (VC PRIMOS)
14 tool positions (VC PRIMOS)
Automatic gripper changing system
Max. robot payload: 165 kg
Max. handling weight: 90 kg
Program size: 8 MB
