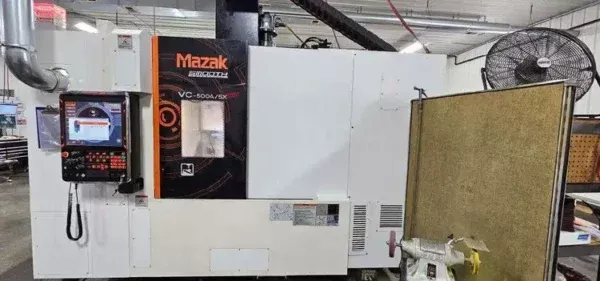

Mazak VC-500A/5X 5 Axis

MAZAK VC-500A/5X
2018

Number of tables 2
Table load capacity 440 lb
Spindle power 15 hp
Spindle nose to table distance 4.5224 in
Spindle speed 20000 rpm
Spindle taper 40
X-axis travel 21.85 in
Y-axis travel 19.88 in
Z-axis travel 20.07 in
B-axis travel ±110 degrees
C-axis rotation 360 degrees
Rapid traverse X 1181 in/min
Rapid traverse Y 1181 in/min
Rapid traverse Z 1181 in/min
Cutting feed rate 0 in/min
Tool changer capacity 60
Max tool diameter 4.92 in
Max tool length 10.23 in
Max tool weight 17 lb
Machine weight 14330 lb
Control Mazatrol Smooth X CNC

Mazak Mazatrol Smooth X Control
8MB memory
Factory auto 2-pallet changer
HSK pallet workholding system
Auto pecking cycle
Smooth Set and Inspect
5-axis machining package
60-tool automatic changer
Synchronized tapping
G00 slope constant
Chip conveyor
EIA/ISO compatible
Spiral EIA 3D compensation
Rotation, geometric, scaling functions
Extended data I/O
Shape compensation
Thread cutting
Inverse time
3D coordinate rotation
Polar coordinate input
Comparison stop
600 variable sets
Simultaneous 5-axis machining
EIA helical tap and pattern cycles
Tilted workplane
Work position error compensation
Coolant through spindle 213 psi
Handheld MPG
Advanced Ethernet/IP
Dual probing kit RMP 600 and RTS-AA
EIA Inspection Plus software
Machine installed new March 2020
