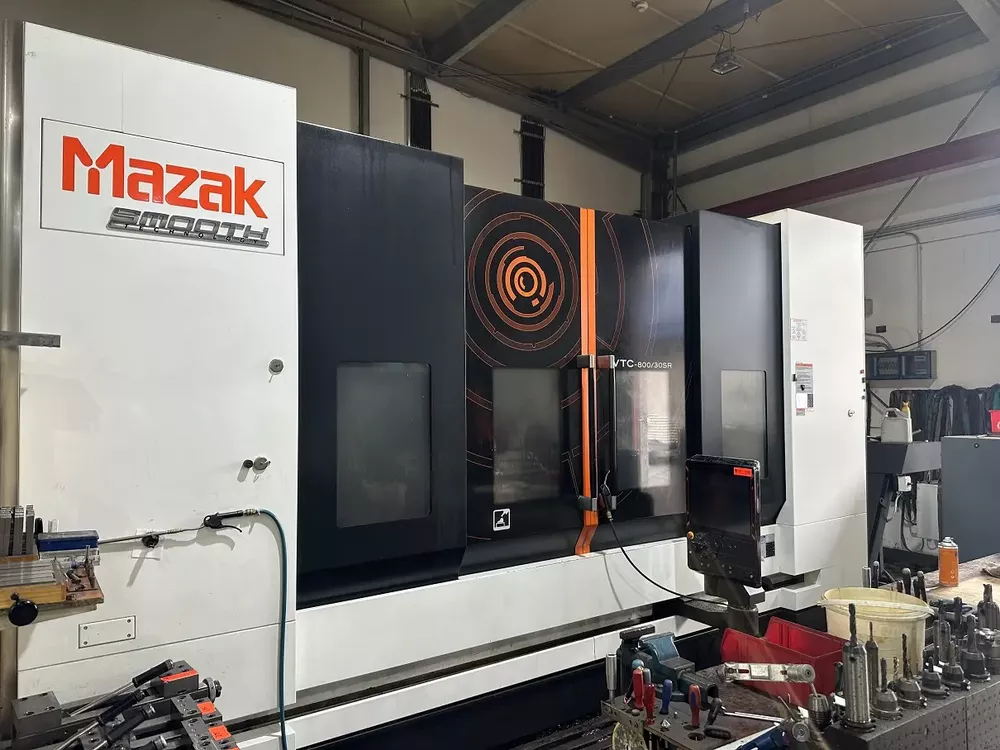

Mazak VTC-800/30SR 5 Axis

Travel X: 3000 mm
Travel Y: 800 mm
Travel Z: 720 mm
Rapid traverse X: 50 m/min
Rapid traverse Y: 50 m/min
Rapid traverse Z: 50 m/min
Rapid traverse B axis: 50 rpm
Rapid traverse C axis: 25 rpm
B axis: 220°
C axis: 360°
Control: Smooth X CNC
Ethernet function
Synchronous tapping
Cylindrical interpolation
Chip conveyor
High pressure pump: 15 bar
Additional work light
Spindle power: 35 kW
Spindle speed: 18000 rpm
Spindle taper: SK40
Tool magazine: 48 positions
Max tool length: 350 mm
Max tool diameter: 80 mm
Max tool diameter (adjacent free): 130 mm
Max tool weight: 8 kg
Table size: 3500 x 820 mm
Table load: 2500 kg
Rotary table diameter: 500 mm
Switch-on hours: 12000 h
Spindle hours: 4500 h
