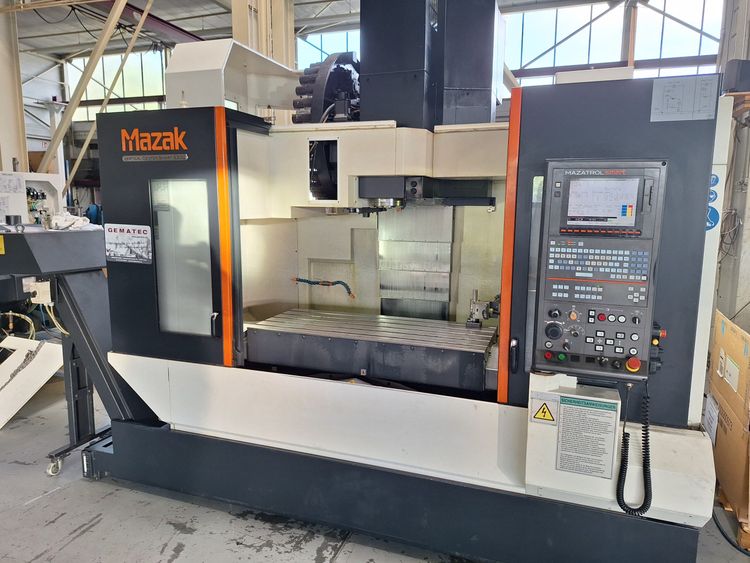

Mazak VC SMART 530C 3 Axis

X-axis travel: 1050 mm
Y-axis travel: 530 mm
Z-axis travel: 510 mm
Rapid traverse X/Y/Z: 42 m/min
Control: Mazatrol Smart
Table size: 1300 × 550 mm
Table load capacity: 1200 kg
Distance spindle nose to table: 150–660 mm
Spindle speed: 12000 rpm
Spindle motor power: 18.5 kW (5 min) / 11 kW (30 min)
Through spindle coolant: 15 bar
Tool magazine capacity: 30
Tool holder: SK 40
Max tool diameter: 80 mm (125 mm with free adjacent slots)
Max tool length: 350 mm
Max tool weight: 8 kg
Machine footprint (L × W): 2880 × 2929 mm
Machine height: 2808 mm
Machine weight: 7000 kg
Chip conveyor
Automatic tool length measurement system
Electronic handwheel
Renishaw probe OMP 60
