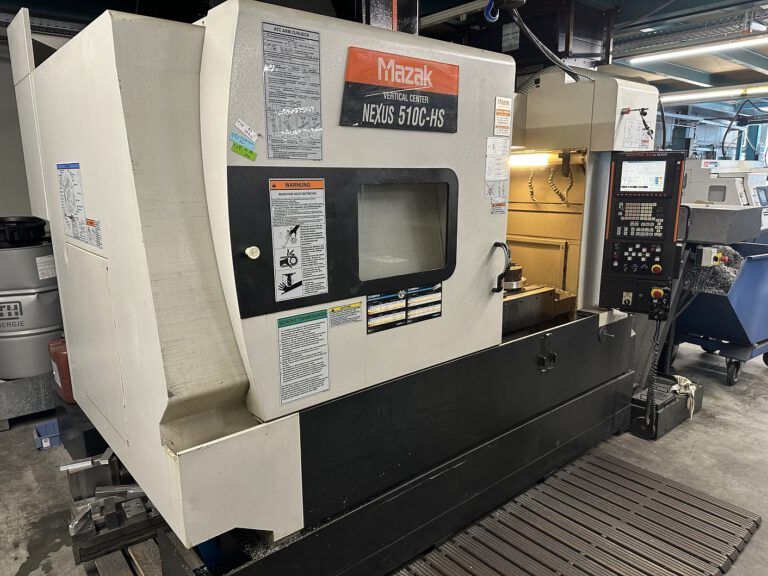

Mazak VCN 510 HS 3 Axis

X-Axis Travel: 1,050 mm
Y-Axis Travel: 510 mm
Z-Axis Travel: 510 mm
Distance Spindle Nose to Table Surface: 150-660 mm
Rapid Traverse (X/Y/Z): 50 m/min
Cutting Feed Speed (X/Y/Z): 50,000 mm/min
Control: Mazatrol 640 M Nexus
Milling Spindle Drive Power: 30/22 kW
Milling Spindle Max Speed: 15,000 RPM
Spindle Taper: SK-40 DIN69781
Table Size: 1,300 x 550 mm
Max Table Load: 1,200 kg
Tool Magazine Slots: 30
Max Tool Diameter: 80 mm
Max Tool Diameter with Free Additional Space: 125 mm
Max Tool Length: 350 mm
Max Tool Weight: 8 kg
Air and Coolant Blow Through the RH Spindle
Tool Length Measurement
Mazak Monitoring System B, incl. Renishaw OMP60 Probe
Chip Conveyor, Ejector Left
Cover Coolant
High Pressure Pump, 15 bar
