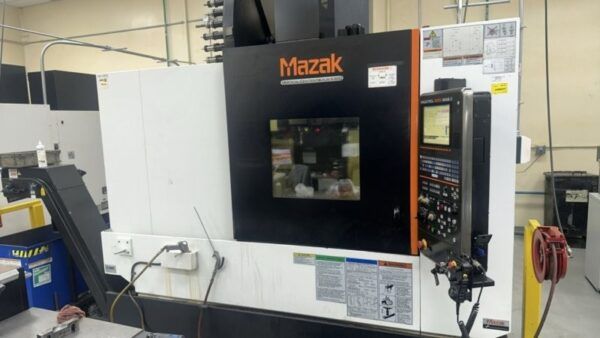

Mazak VCN530C-II / VCN-530C-II 3 Axis

MAZAK VCN530C-II / VCN-530C-II
2015

TABLE SIZE … 51″ × 22″
SPINDLE NOSE TO TABLE MIN/MAX … 5.9″/26″
TABLE LOAD CAPACITY … 2646 lbs

X‑AXIS TRAVEL … 41.34″
Y‑AXIS TRAVEL … 20.87″
Z‑AXIS TRAVEL … 20.08″

RAPID TRAVERSE … 1468 IPM
CUTTING FEEDRATE … 987 IPM
SPINDLE SPEED … 12,000 RPM
SPINDLE TAPER … CAT 40
SPINDLE MOTOR … 25 HP
TOOL MAGAZINE CAPACITY … 48 positions
TOOL CHANGER TIME … 1.3 sec
ELECTRICAL CAPACITY … 208 V / 138 A
MACHINE DIMENSIONS … 110″ × 117″ × 119″
MACHINE WEIGHT … 16,755 lbs

Mazatrol Matrix 2 CNC control
Manual pulse generator (MPG)
Coolant system
Right‑side discharge chip conveyor
Renishaw part probing
40 CAT 40 toolholders
Spindle chiller
48‑position tool magazine
