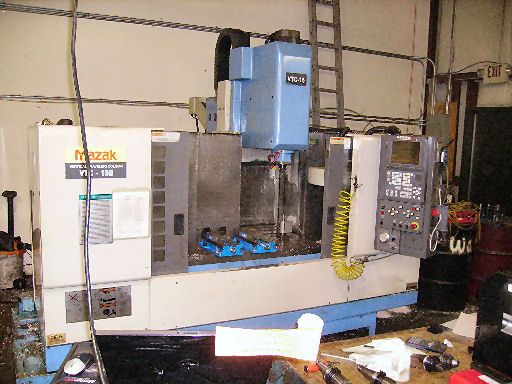

Mazak VTC-16B 3 Axis

MAZAK VTC-16B
1999

X-axis travel 44.09"
Y-axis travel 16.14"
Z-axis travel 20.08"
Table size 57.48" x 16.14"
Table load capacity 1600 lbs
Distance from spindle nose to table top 4.3" to 24.4"
Rapid traverse rate X/Y 787 IPM
Rapid traverse rate Z 590 IPM
Tool magazine capacity 24 ATC
Chip-to-chip tool change time 11.4 sec
Max tool length 13.8"
Max tool weight 17.6 lbs
Spindle nose #40
Spindle speed 40–8000 RPM
Spindle motor 15 HP
Floor space dimensions 126" x 99" x 106"
Machine weight 11700 lbs
MAZATROL PC-FUSION 640M
10.4" color CRT
RS-232 port
Floppy drive
