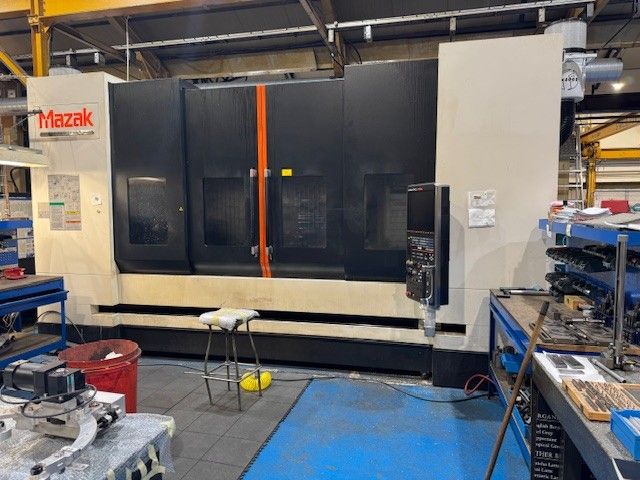

Mazak VTC800/30SR 5 Axis

4796
Price: Call for Price

MAZAK VTC800/30SR
2011

Control: CNC (Mazatrol Matrix)
Table Size: 3500 x 820 mm
X - Axis Travel: 3000 mm
Y - Axis Travel: 800 mm
Z - Axis Travel: 720 mm
Spindle Head Rotation: ±110°
NC Rotary Table: 360,000 positions
Tool Changer Capacity: 48
Tool Taper: BT40
Rapid Traverse Rate: 50 m/min
Spindle Speed: 18,000 RPM
High Pressure Coolant Through Spindle: 15 kg/cm²
Renishaw RMP60 Probe
Automatic Tool Length Measurement
Tool Breakage Detection
NC4 Laser Tool Checker
Swarf Conveyor
Control Option: EIA
Control Option: Spiral
Control Option: EIA 3D Compensation
Control Option: Rotation
Control Option: Geometric
Control Option: Scaling
Control Option: External Data I/O
Control Option: Shape Compensation
Control Option: Thread
Control Option: Inverse Time
Control Option: 3D Coordinate Rotation
Control Option: Auto Tool Length Measurement
Control Option: Polar Coordinate Input
Control Option: Comparison Stop
Control Option: G54.1
Control Option: Synchronized Milling Tapping
Control Option: Rotary Axis Shape Compensation
Control Option: Variable Settings 600 Sets
Control Option: EIA Helical Tapping Cycle
Control Option: EIA Pattern Cycle
Control Option: Second Auxiliary Functions
Control Option: Tilted Working Plane
Auto Cutting Hours: 4,036
Total Machine Hours: 23,105
