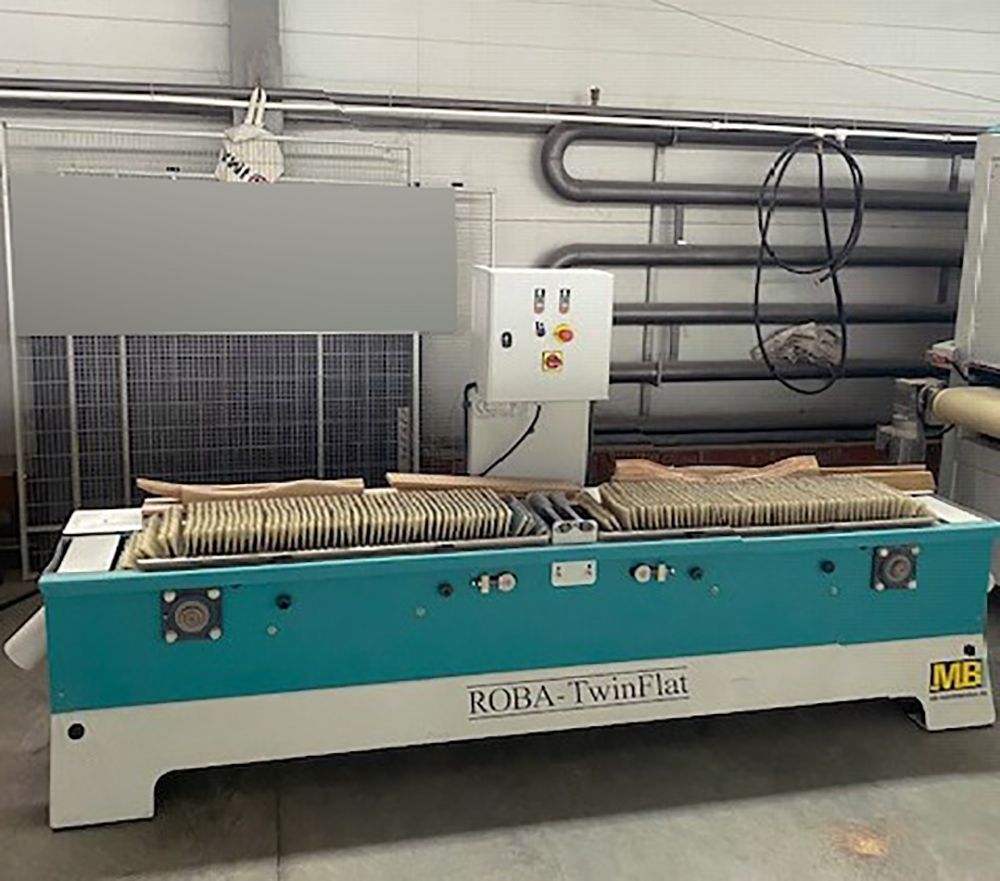

MB Maschinenbau ROBA FLAT TWIN Belt sanding brush machine

Specifications:
Electric-welded machine frame
Segments are used with brush heights of: 30/45/60/75 mm (brush height
and sanding paper are selected individually in each case based on the type of operation and the material of the parts being processed)
The width of the first working area is 100 mm
The width of the second working area is 150 mm.
The length of each side of the sanding brush belt in one direction is 1150 mm
Total working grinding length - 2450 mm
Sanding belt speed - 60...230 m/min, stepless adjustment
Aspiration connection - Ø100 mm
Power consumption: 3.0 kW
Power supply: 400 V, 50 Hz, 3 phases
Frequency converter
The machine is manufactured according to CE standards
Machine length is 2900 mm
Machine width is 700 mm
Machine height is 900 mm
Machine weight is 850 kg

The machine includes:
• Two grinding belts, 100 mm and 150 mm wide, to the left and 150 mm wide, to the right.
• The machine is equipped with a set of grinding segments, one for each grinding belt,
the grain size and height of the brushes according to the customer’s requirements or selected at the MB factory based on the parameters of the workpieces.
A total of 544 grinding elements are installed on the machine (272 100 mm long and 272 150 mm long).
