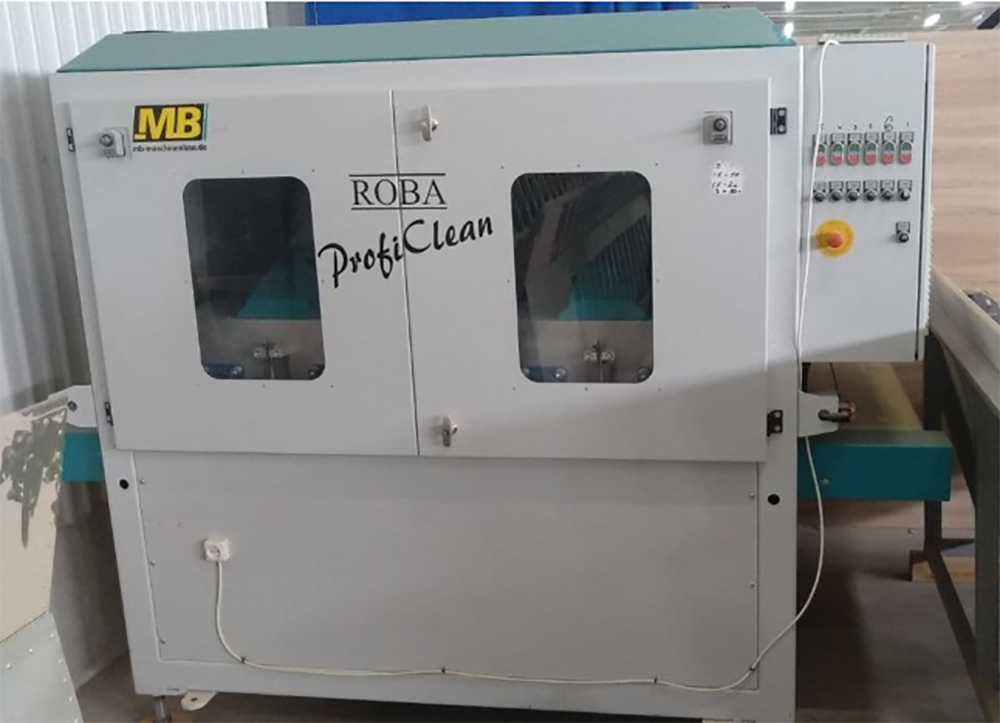

MB Maschinenbau ROBA PROFI CLEAN Pass-through machine

Pass-through machine (4 shafts) for removing adhesive residue and softening edges after film cutting.
Machine composition:
A stable frame structure with units mounted on it.
Conveyor belt width 1300 mm, stepless feed 4...15 m/min, motor 0.55 kW
Electronic stepless speed control: 200-700 rpm
The thickness of the workpiece is set within the range of 5-80 mm,
Diameter of the aspiration connection pipes: 160 mm
Double cleaning drums with special surface cleaning cloths, counter-rotating direction.
Maximum outer diameter: 310mm
Shaft width: 1320 mm
Engine: 3.0 kW with 2 gearboxes i=1:2
Upper clamping system:
Upper pressure system with 3 rubberized upper rollers located at the entrance, in the middle part and at the exit of the double brush system
The clamping system ensures grinding of parts with the following minimum dimensions:
Minimum length of workpiece: 300 mm,
Minimum width: 50 mm

Machine weight: approximately 1700 kg
Machine length: approximately 2100 mm
Machine width: approximately 2100 mm
Machine height: approximately 1800 mm
Thickness of parts: 5 – 80 mm
Electronic stepless speed control: 200-700 rpm
Working height: 900 +/- 50 mm
Working width: 1300 mm
Installed capacity: 15 kW
Power supply: 400V /3/ 50Hz.
Electrical equipment:
Central control panel protection according to IB54
