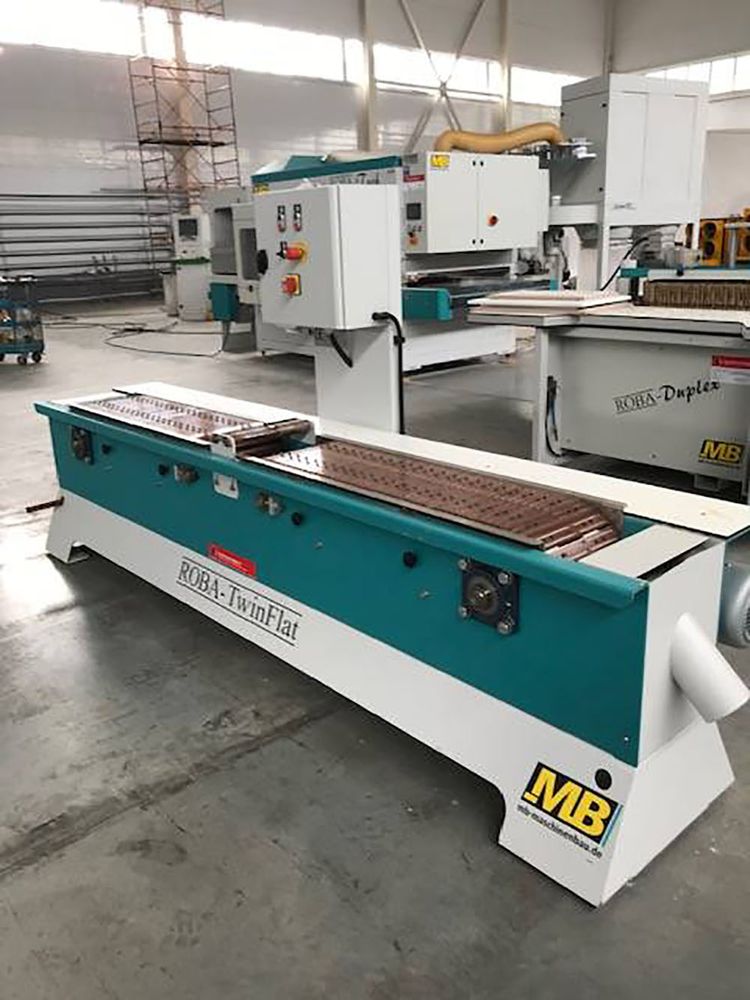

MB TWIN FLAT

The machine was specifically designed for use in the production of solid wood window frames and doors—any solid wood
or veneered mullions, crossbars, or panels—in both custom and small-scale production.
This equipment is also widely used in all industrial carpentry businesses.

Machine applications:
Preliminary grinding of massive elements
Preliminary sanding of veneered elements
Intermediate sanding on varnish

Width of the first working area 100 mm
Width of the second working area 150 mm
The length of each side of the sanding brush belt in one direction 1150 mm
Total working grinding length 2450 mm
Sanding belt speed 60…230 m/min stepless adjustment
Connecting the aspiration Ø100 mm
Power consumption 3.0 kW
Nutrition 400 V, 50 Hz, 3 phases

Frequency converter
The machine is made according to CE standards.
Machine length is 2900 mm.
Machine width is 700 mm.
Machine height is 900 mm.
Machine weight is 850 kg.
