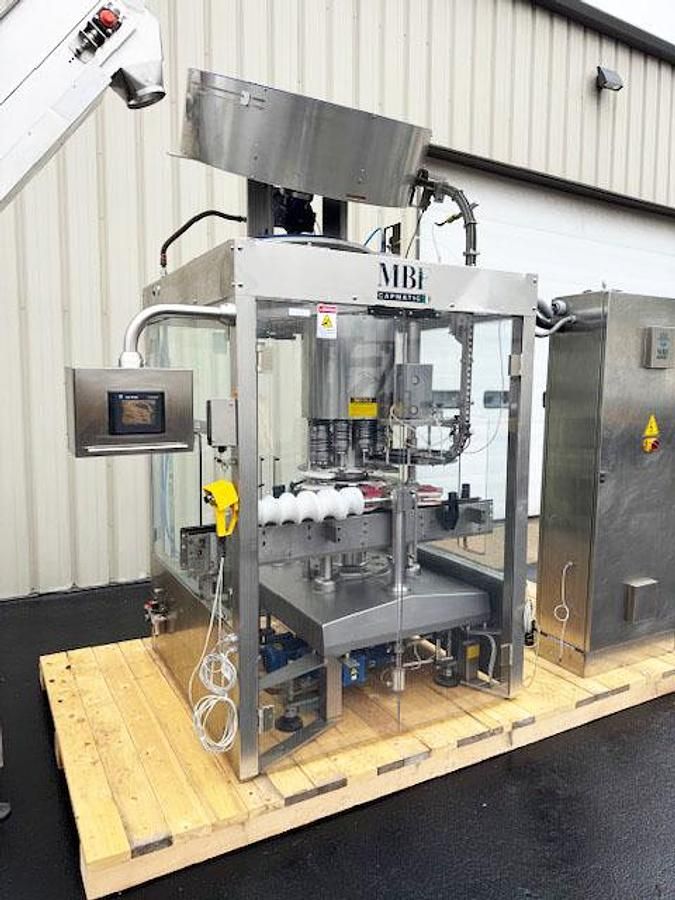

MBF CAPMATIC 9-Head Rotary T-Corker

with Hopper Elevator Cork Feeder
Factory rated speeds; Minimum 3,000bph / Maximum 15,000bph

Heights: Min.160mm*/Max. 360 (* For future ROPP caps min height 160mm, for Press-on caps min height 200mm)

Diameters: Minimum 55mm/Maximum 117mm
Starwheel Pitch 21.25”
24” Long Container Infeed Timing Screw
Stainless Steel Construction
Safety Enclosure with Interlocking Access Doors
MBF Rotary T-Cork Sorter Model Distr.Long Caps SS1200
Includes Existing Bottle Handling Change Parts for 750ml Round Glass
4.5” Wide x 68” Long Pull Through Conveyor Section
Conveyor Elevation 42” (adjustable)
Threaded Leveler Legs
Freestanding Stainless Steel Electric Panel 32” L x 16” W x 84” H
Allen-Bradley SLC 5/04 Processor
Allen Bradley PanelView 600 Operator Interface
Allen Bradley Powerflex Speed Drives
Electrical 480 Volt, 3 Ph, 60 Hz,
CE Rated
Corker Dimensions 87” L x 58” W x 132” H with cap sorter
Includes Fowler Model BDC-20 T-Cork Hopper Elevator Feeder,
8” Wide Cleated Belt, 2” Cleats 4” On Center
Hopper Dimensions 48” L x 48” W x 32” Deep
(4) Threaded Leveler Legs
Hopper-Elevator Dimensions 120” L x 58” W x 142” H
