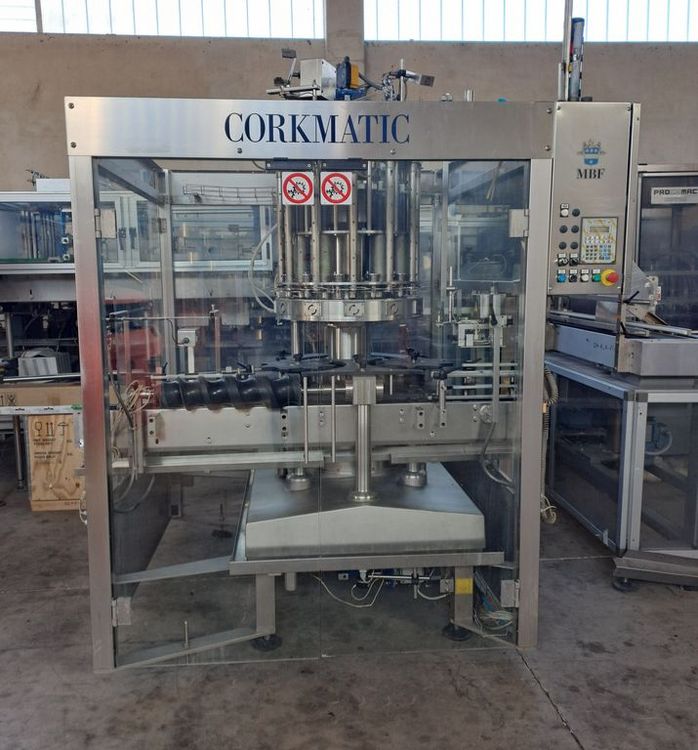

MBF Corkmatic R/S 12-HEAD CORKING MACHINE FOR MUSHROOM
EUROPE (Western and Northern)
12-head corking machine for mushroom and natural corks,
Work direction clockwise, from left to right.
Cork compression boxes entirely in stainless steel with quick-release dowel units.
Lifting cylinders in stainless steel with double springs for differentiated pressure.
Stainless steel control panel composed by a PLC for machine management, a multifunctional keypad with a digital display for data and functions, and an inverter.
Drainage-type stainless steel base, safety guards positioned around the perimeter of the machine with doors that open on both sides and tempered glass.
Production: 15.000 bottles/hour about.
Complete with a cylindrical bottles format for sparkling wine.
Complete with use and maintenance manual, wiring diagram, and CE certificate.
Corking machine dimensions: Length 2200mm x Width 1700mm x Height 2700mm about.
Complete with Neri automatic cap feeder with dust extractor.
Maximum production: 20.000 corks/hour about.
Hopper capacity: 8.000/10.000 corks.
With cork feed tubes.
Complete with use and maintenance manual, wiring diagram, and CE certificate.
Neri cap feeder dimensions: Length 1150mm x Width 500mm x Height 2300mm about.
Total weight of both machines: 3500 Kg about.
