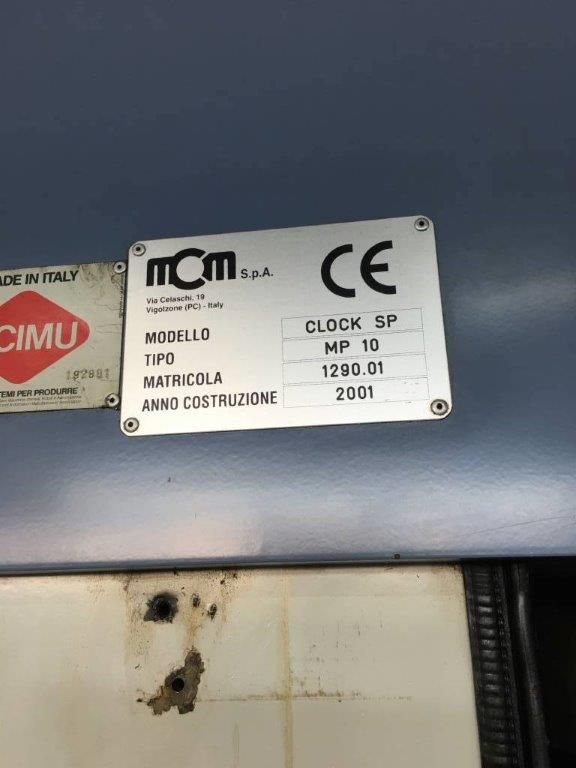

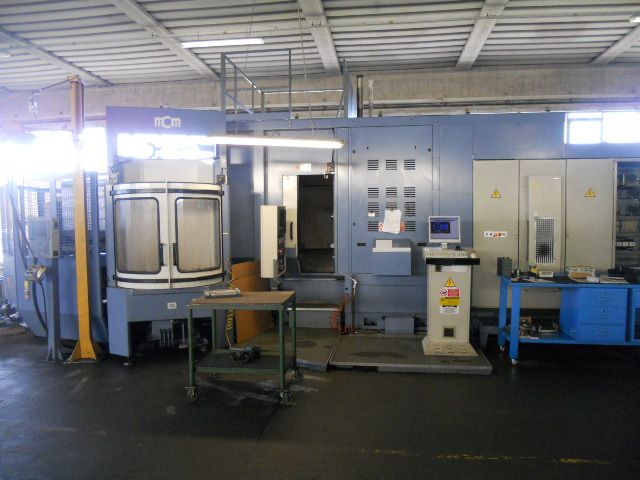

Mcm CLOCK SP MP 10 1200-CE-

Travels: X 1,200 / Y 850 / Z 850 mm
Control: Siemens 840 D

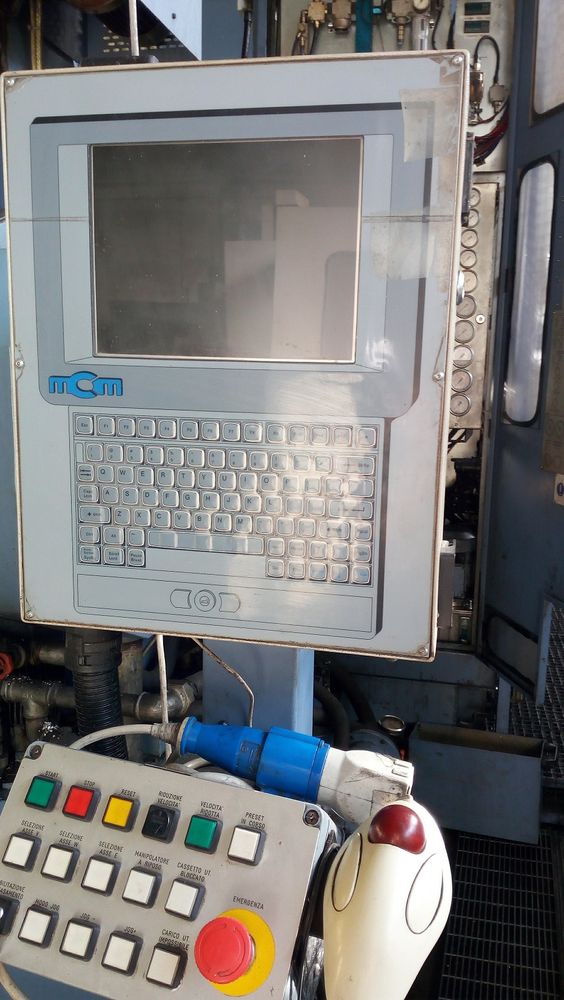

Supervisor: J-FMX
Electro-spindle: Omlat 12,000 rpm (HSK 100), chiller-cooled
Pallet dimensions: 630x630 mm
Number of pallets: 9
Tool magazine: 3-level, 289 positions
High-pressure coolant: Through-spindle (65 bar)
Cabinet cooling: Electrical unit
Chip conveyor: Scraper type
Pallet loading: 1 operator
Magazine tool monitoring: Blum
System: Balluff
Motors and drives: Siemens Digital
Rapid traverse speed: X/Y/Z = 40 m/min
Table: Continuous rotation, max speed 20 rpm
Screws: NSK ball screws
Balancing: Pneumatic head balancing
Optical scales (X/Y/Z): Heidenhain IL D 382 C
Table encoder: Heidenhain RON 785 C
Max workpiece swing diameter: 1,200 mm
Max workpiece height: 1,080 mm
Max workpiece weight: 800 kg
Accessories: Approx. 230 tool holders
