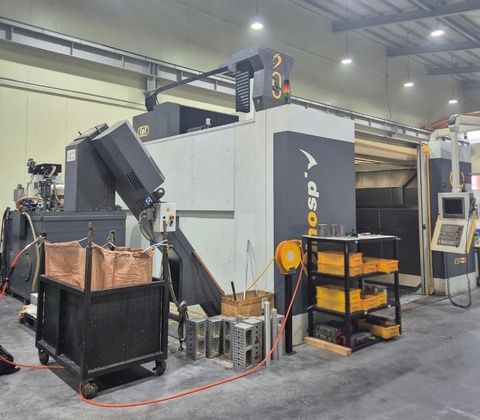

FPT DINOSPIN 5 Axis

X-axis travel: 4000 mm
Y-axis travel: 2500 mm
Z-axis travel: 1300 mm
A-axis: ±185°
C-axis: ±270°
Control: Heidenhain TNC 640
5-axis CNC
Tool measuring system
Touch probe
Table size: 4000 × 2500 mm
Maximum table load: 10 t/m2
Spindle speed: 10–18000 rpm
Spindle motor: 22/33 kW
Spindle torque: 84/128 Nm
Tool taper: HSK-A63
Feed rate X/Y/Z: 40000 mm/min
Feed rate A/C: 30 rpm
Automatic tool changer: 80 stations
Maximum tool weight: 10 kg
Maximum tool length: 600 mm
Maximum tool diameter: 75/125 mm
Chip conveyor
Dust extractor
CE marked
Weight: Approx. 44280 kg
