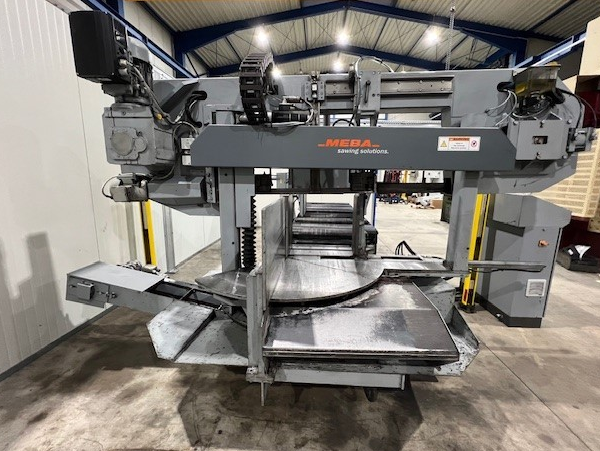

Meba 410 DGA 2300 Band Saw CNC control

Cutting diameter 410 mm
Saw band length 5800 x 41 x 1.3 mm
Table height 750 mm
Cutting speed 15–150 m/min
Drive motor power 5.5 kW
Machine dimensions 4500 x 2800 x 2000 mm
Machine weight 3200 kg


Automatic cutting pressure monitoring
Automatic feed rate monitoring
Frequency-controlled AC drive
Hydraulic full-stroke material clamping
Automatic movement of clamping vices
Automatic saw frame height adjustment
Saw blade monitoring
Electric miter tilting via servo motor
Visualized program input
Integrated gripper infeed system
Infeed stroke length 5–2300 mm
Integrated roller conveyor
Laser cutting line display
Driven chip brush
Micro dosing system
Clamping pressure regulation
Material bundle clamping
Job menu
Material database
Zero stop
Scraper belt chip conveyor
Cutting process control
